O2200 L12 Cbrs Lte Cat12 Outdoor Cpe - China

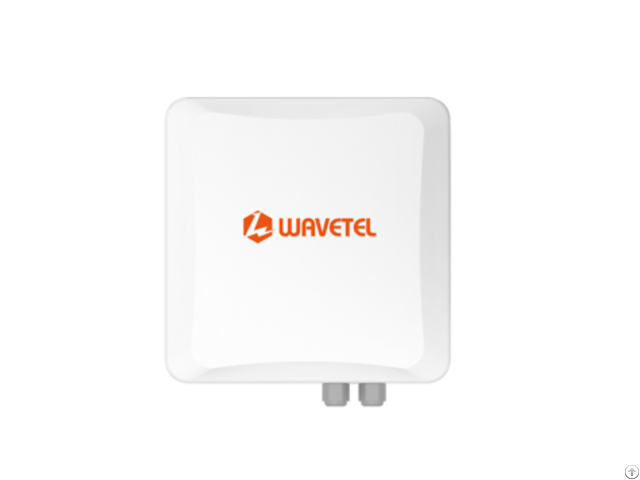

O2200-L12 is a high-end 4G/LTE outdoor CPE of Category 12 - It supports various and advanced data functions to help the enterprise users access the internet of the network operator and ISP securely and steadily.

With built-in high gain directional antenna, O2200-L12 is able to offer the ultra-fast connection and long distance wireless broadband access.

Plus IP66 design, it is the ideal choice for deployment in rural and hard-to-reach areas.

Highlights: ·LTE Category 12, supports LTE FDD/LTE TDD/WCDMA radio systems ·10dBi Directional Antenna ·Power over Ethernet ·VPN: L2TP, PPTP, IPSec, EoIP ·Built-in WiFi ·IP66 Design, suitable in harsh environment ·Local and remote device management ​ LTE ·Category 12, 3GPP Rel.

14 ·Max DL/UL Rate: LTE-FDD: 600/150Mbps LTE-TDD: 460/90Mbps ·Antenna: Internal Panel Directional ·Multi-APN (Optional) ·Multi Bands Combination: ·DL 3CA, 256QAM; UL 2CA, 64QAM ·DL 4x4 MIMO Interface ·Ethernet Interface 1 x 100/1000Mbps PoE LAN 1 x 100/1000Mbps LAN ·LTE Interface: 2 x SIM Card Slot ·LED Indicator: 3G/LTE Signal Strength, Running, PPP, USR ·1 x Reset Button ·Built-in WiFi and Cellular Antennas WiFi (Optional) ·IEEE 802.11b/g/n, 2.4GHz ·Max Rate: 300Mbps ·Antenna: 2x2 MIMO, Internal Omni-directional ·Bandwidth: 20M/40M ·Maximum 25 Users ·Maximum 4 SSID ​ Router Functions ·DHCP, DHCP Relay, DNS, DDNS, NTP ·NAT, ALG, DMZ, Port Forwarding ·VPN: L2TP, PPTP, IPSec, EoIP ·IPv4, IPv6, IPv4/v6 ·Static Route, Policy Route ·VLAN ·IP Passthrough ·Firewall Defense of DoS/ARP Attack/Port Scan URL/Domain Blocking MAC/IP/Port Filtering White/Black List ·QoS ·Syslog, Diagnostic tool ·Management: Web, CLI, SSH, SNMP, TR069 Environmental ·Size: 275mm x 275mm x 137mm ·Net Weight: 1250g ·Power Supply: Standard PoE 48V ·Ingress Protection: IP66 ·Operation Range: -40℃ to 75℃ ·Humidity: 10%-95%, non-condensing ·Installation: Pole-Mounted, Wall-Mounted ​ O2200-L12 supports Carrier Aggregation combinations as shown below: O2200-L12-EAU Carrier Aggregation Combinations: DL 2CA: 1+3, 1+5, 1+7, 1+8, 1+18, 1+19, 1+20, 1+28, 1+38, 1+40, 1+42, 3+5, 3+7, 3+8, 3+20, 3+28, 3+32, 3+38, 3+40, 3+42, 5+7, 7+8, 7+20, 7+28, 7+32, 20+32, 28+40, 41+42, 1+1, 3+3, 5+5, 7+7, 38+38, 40+40, 41+41, 42+42 DL 3CA: 1+3+5, 1+3+7, 1+3+19, 1+3+20, 1+3+28, 1+3+38, 1+3+40, 1+5+7, 1+7+8, 1+7+20, 1+7+28, 1+20+32, 3+5+7, 3+7+8, 3+7+20, 3+7+28, 3+7+32, 3+20+32, 1+41+42, 7+20+32, 3+28+40, 3+7+7, 1+7+7, 1+3+3, 1+40+40, 1+41+41, 1+42+42, 3+3+5, 3+3+7, 3+3+20, 3+3+28, 3+3+32, 3+40+40, 3+41+41, 3+3+41, 7+7+28, 28+40+40, 19+42+42, 41+42+42, 41+41+42, 40+40+40, 41+41+41 UL 2CA: 3+3, 5+5, 7+7, 40+40, 42+42 ​ O2200-L12-NA Carrier Aggregation Combinations: DL 2CA: 2+4, 2+5, 2+12, 2+13, 2+14, 2+29, 2+30, 2+66, 4+5, 4+12, 4+13, 4+29, 4+30, 5+30, 5+66, 12+30, 13+66, 14+30, 14+66, 29+30, 25+26, 25+41, 26+41, 2+46, 4+46, 13+46, 25+46, 46+66, 5+46, 12+66, 29+66, 30+66, 4+71, 2+71, 66+71, 2+48, 5+48, 13+48, 48+66, 4+48, 2+2, 4+4, 5+5, 25+25, 41+41, 66+66, 48+48 DL 3CA: 2+4+5, 2+4+12, 2+4+13, 2+5+30, 2+12+30, 2+29+30, 2+5+66, 2+13+66, 2+14+30, 2+14+66, 2+30+66, 4+5+30, 4+12+30, 4+29+30, 14+30+66, 2+5+46, 2+13+46, 2+46+66, 5+46+66, 13+46+66, 2+12+66, 5+30+66, 12+30+66, 29+30+66, 2+4+71, 2+48+66, 2+5+48, 2+13+48, 5+48+66, 13+48+66, 2+66+71, 46+48+66, 2+46+48, 2+4+4, 2+66+66, 2+2+5, 2+2+12, 2+2+13, 2+2+30, 2+2+66, 4+4+5, 4+4+12, 4+4+13, 5+66+66, 2+46+46, 4+46+46, 46+46+66, 29+66+66, 30+66+66, 2+2+46, 46+66+66, 4+4+71, 2+2+71, 2+48+48, 48+48+66, 5+48+48, 66+66+71, 2+2+4, 5+5+66, 48+66+66, 2+2+14, 14+66+66, 2+5+5, 5+5+30, 25+41+41, 26+41+41, 13+46+46,, 5+46+46, 46+46+66, 13+48+48, 5+48+48, 12+66+66, 4+5+5, 13+66+66, 5+5+46, 4+48+48, 41+41+41, 66+66+66, 48+48+48 UL 2CA: 2+4, 2+12, 2+13, 2+66, 4+5, 4+12, 4+13, 12+66, 13+66, 5+5, 66+66 ​ *Please feel free to contact us for more frequency band and CA combinations.
