Sc Upc Sm Fiber Optic Fast Connector For Ftth Solution - China

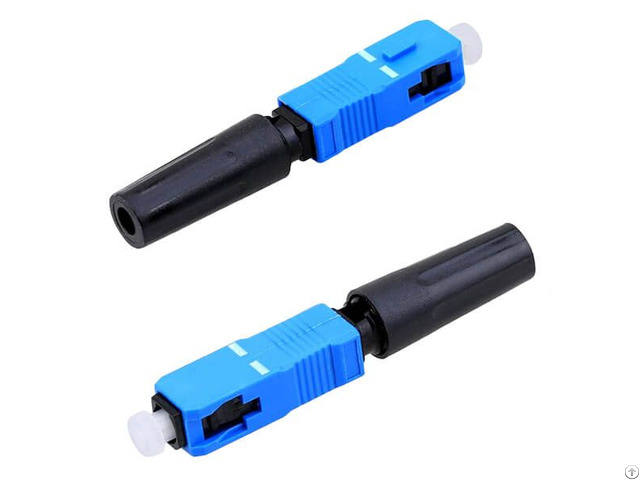

SC/UPC SM Fiber Optic Fast Connector is a perfect solution for filed working and FTTH connection.

Optical fast connectors are widely used for where need to quick connection, providing a quick assembly and stable performance.

The field assembly optical connector are available for UPC or APC polishing end face as option.

Also the connector boot provides 900um loose tube and 3.0mm simplex cable or drop cable optional.

Description

1 - Model No: FLK-FAOC-SU03

2 - Applicable for Field optical cable : 0.9mm, 2.0mm, 3.0mm indoor cable or Drop cable 3.0×2.0mm

3 - Optical fiber diameter 125μm: SM G652D, 657A & 657B

4 - Fiber mode: Single mode

5 - Polishing Type: UPC or APC

6 - Operation time: About 120s(no fiber cut)

7 - Insert loss: ≤ 0.3dB(1310nm & 1550nm)

8 - Return loss: UPC≥50dB, APC≥60dB

9 - Fastening strength of naked fiber: >5 N

10 - Fastening strength of naked fiber holder: >10 N

11 - Tensile strength: >50 N

12 - Using temperature: -40～+75℃

Feature

FTTH project usable

PC, APC polishing optional;

Inside ferrule with fiber stuff and pre-polishing

Field installation, quick connection, easy for operation

No epoxy, no polishing, no adhesive, no electricity required

High performance and high reliability

Simply and easy fixed fiber or cable

Cable Tensile complied with Telcordia GR-326-CORE
