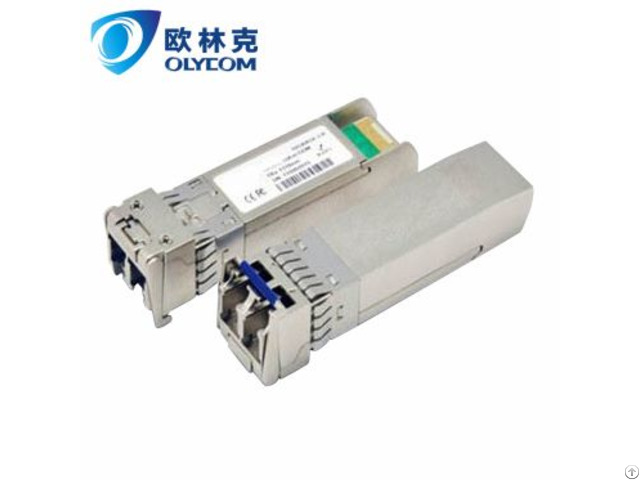

Sfp Transceiver 10gb S 10km Hot Pluggable Duplex Lc 1310nm Dfb Ld Single Mode 10g Lr - China

price: 30.00 Dollar US$

OLYCOM's OSPLXG10D is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s.

The OSPLXG10D converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams.

The high speed 10Gb/s electrical interface is fully compliant with SFI specification.

The high performance 1310nm DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 10km links The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR.

Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472 - The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

Features:

1 - Supports 9.95 to 11.3Gb/s bit rates

2 - Hot-Pluggable

3 - Duplex LC connector

4 - 1310nm DFB transmitter, PIN photo-detector

5 - SMF links up to 10km

6 - 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface

7 - Power Supply : +3.3V

8 - Power consumption<1.5W

9 - Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available

10 - RoHS compliant


Company Contact:


  • Phone: 86-18088882285

  • Address: Nanshan district, Shenzhen , Guangdong , China

  • Email: Email


Published date: October 8, 2016

  • Business Description: Olycom is a manufacturer of fiber optic.

    Main product are fiber media converter, industrial POE fiber switch, SFP transceiver and video optical converter.
