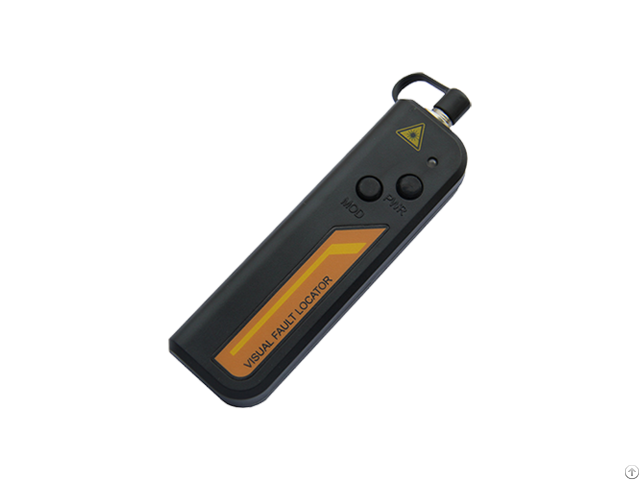

Shinho High Quality X 5003 Visual Fault Locator Vfl - China
price: 20.00 Dollar US$
Features *Constant & stable output power
*Low battery warning, reminds users to change the battery timely.
*Long battery life(up to 40 hours with AAA batteries)
*Pocket size and light weight, easyto use.
*Re-changeable ceramic tube, to avoid returning to manufacturer for this small fault.
X-5003 Visual Fault Locator Data Sheet Central Wavelength 650nm±10nm
Emitter Type FP-LD
Output Power 1mw or 10mw
Optical Connector 2.5mm universal connectorFor 1.25mm connectors, FC-1.25mm Hybrid adaptor
can be optional on customer requests
Operating Model Both CW and Pulse(2Hz) available
Power Supply Two AAA alkaline batteries
Battery Operating Time 650nm@1mw ≥45hours;650nm@10mw≥1 5hoursTest with Panasonic LR6 AAA
ALKALINE battery
Operating Temperature -10~+60 (ºC)
Storage Temperature -25~+70 (ºC)
Dimension (mm) 115*45*27
Weight 50g(Without Batteries)
