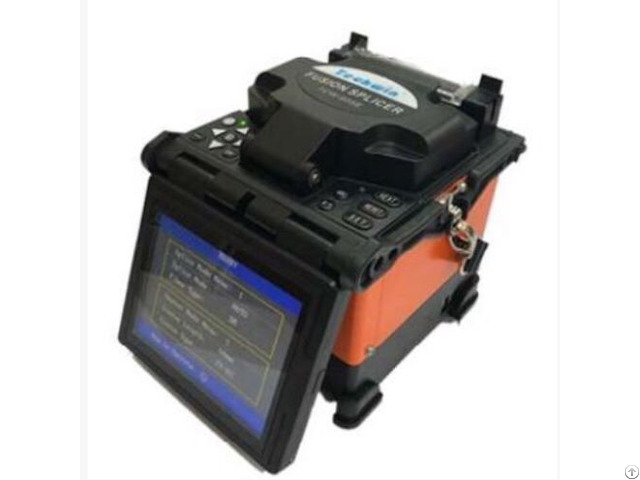

The World S Fastest And Easiest Core Aligning Fusion Splicer - China

The World S Fastest And Easiest Core Aligning Fusion Splicer

Introduction

The TCW-605E Series adopt high-speed image processing technology and special precision- positioning technology, automatically finish the whole process of fiber fusion in 8 seconds typically, TFT LCD monitor displays all steps of fiber fusion clear at a glance.

Widely used for SM and MM Quartz Fiber with diameter 80-150μm(300μm optional), coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less.

Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.

Support English, Spanish, Portuguese, French, Italian, German, Arabic, Russian, Korea, Japanese, etc.

Specification

Not only a Fusion Splicer, but also your partner who make your job easy and happy

5.0 inch TFT color LCD monitor with anti-reflective coating

The advanced core to core fiber profile alignment system(PAS)

ARC Calibration FREE system ARC Calibration sub-menu included in the Menu too, can do the ARC Calibration by Manual when necessary

X/Y axes was displayed or both X and Y were displayed simultaneously, Magnification up to 300 times

8 seconds splicing time, 30 seconds Heat-Shrinking

Battery capacity was display in real time, precisely

Built-in high capacity battery, support 200 cycles(splicing /tube heating), to meet one days’ work Long Electrode Lifetime, up to 4000 times

The new wind-cover design, enhance the ability to prevent the dust & wind, Max.

wind velocity of 15m/s

Two Splicing modes: auto, manual

Built-in super high-brightness LED supply convenience for night work

Auto calculate splicing loss based dual camera cladding axis alignment data

Small bulk and light weight, only 2.0kg include battery

4000 results Storage

2.0 USB data interface

Compliance with IPx5 standard protection

Thermal compartment of turned on manual

The software allows the fulfillment of all the functions of the TCW-605E Fusion Splicer, and its updating is guaranteed for a period of 5 years

One year warranty( TWO years or THREE years warranty is available for special order)
