Wavetel 5g Nr Outdoor Cpe O3212 Is Designed To Deliver Ultra High Speed Wireless Broadband Access - China

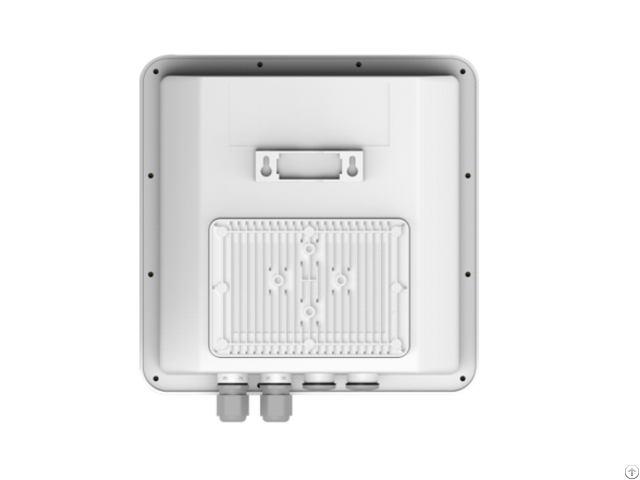

Wavetel 5G NR Outdoor CPE O3212 is designed to deliver ultra-high-speed wireless broadband access to the residential and small businesses via 5G networks.

It supports NSA and SA mode and could reach up to 2.5Gbps downlink peak rate.

With PoE power supply and IP66 design, O3212 is suitable for most out doorsy environments.

Plus the high-gain directional antenna, O3212 is able to help operators and carriers quickly expand their networks and deliver ultra-fast internet access to their subscribers.

5G/LTE · 3GPP Release 15, NSA&SA · DL MIMO 4x4 · Modulation: NR DL/UL: 256QAM/256QAM LTE DL/UL: 256QAM/256QAM · Peak Rate: ENDC Downlink: 2.5Gbps ENDC Uplink: 700Mbps SA Downlink: 2.5Gbps SA Uplink: 1/25Mbps LTE Downlink: 1.6Gbps (Cat 19) LTE Uplink: 210Mbps (Cat 18) · Channel Bandwidth LTE: 1.4/3/5/10/15/20MHz 5G NR: 5-100MHz · Multi-APN · SIM-Lock, Band Lock · Frequency Band: (Please contact us for more frequency band combinations) Interface · 1 * 2.5Gbps PoE LAN · 1 * Gigabit Ethernet LAN · 2* SIM Card Slot ​·1 * Micro-USB · Built-in WCDMA/LTE/5G Antennas · 1 * Built-in GPS Antenna(optional) · 1 * Reset Button ​ Data Functions · WAN Type: Static, DHCP, PPPoE, L2TP, PPTP · Networking Interface: Multi-WAN, Bridge Mode, 802.1Q · Advanced Routing Static Route, Policy Route · Internal Address Management: DHCP Server, DHCP Relay ·Networking Protocols TCP/IP(IPv4/IPv6), UDP, RTP, SNTP, NAT, DHCP, DNS, DDNS ·IPTV: IGMP Proxy/Snooping, IPTV Bridge · WiFi: For local configuration only Firewall & Security · Firewall Protection IDS&IPS, Block Ping/ICMP/IDENT IP and MAC Address Bind SPI Firewall, Port scan restriction · Access control Blocking by URL, IP Address, Mac Address, Protocol Type, Port · VPN: L2TP, PPTP, IPSec, EoIP · QoS: Based on Destination/Source IP/MAC, Application, DSCP, Packet Priority, Bandwidth · NAT: RIP, Port Forwarding/Triggering, DMZ, ALG Management · Management Protocol: WEB, Telnet, SNMP v1/v2, TR069 Environmental ·Size: 280mm x 280mm x 137mm ·Net Weight: 1250g ·Power Supply: Standard PoE 48V ·Ingress Protection: IP66 ·Operation Range: -30℃to65℃, -22℉to 149℉ ·Humidity 10%-90% non-condensin ·Installation: Pole-Mounted
