Wavetel W4300s 5g Wifi 6 Indoor Cpe - China

Wavetel 5G WiFi 6 CPE W4300S supports 5G NR(NSA&SA), LTE and WCDMA networks and is designed to deliver high-speed and low-latency wireless access to the residential and small businesses.

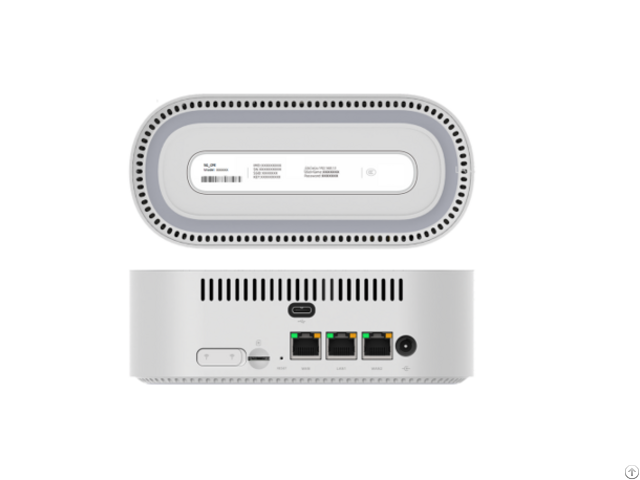

W4300S has three 1Gigabit Ethernet ports and it supports dual-band WiFi6.

Hardware Interface

2* Gigabit Ethernet LAN

1* Gigabit Ethernet LAN/WAN

Dual Band WiFi: 2.4GHz + 5GHz

1* SIM Card Slot (Nano-SIM)

6* Built-in WCDMA/LTE/5G Antennas

2* Built-in WiFi Antennas

2* TS-9 for External 5G Antennas

1* Power Supply Data Services

5G NR Sub-6GHz DL MIMO 4x4, 256QAM Peak Downlink Rate: 3Gbps Peak Uplink Rate: 300Mbps

LTE DL MIMO 4x4, DL 3CC, 256QAM Peak Downlink Rate: 1.2Gbps Peak Uplink Rate: 220Mbps

Frequency Band: 5G NR: N1/N3/N28/N40/N41/N77/N78 /N79 FDD-LTE: 1/3/5/7/8/18/19/20/28/32 TDD-LTE: 38/39/40/41/42 WCDMA: 1/3/5/8 (Please contact us for more frequency band combinations)

WAN Fail over Fail over between Eth and 5G/LTE

WiFi6 IEEE802.11a/b/g/n/ac/ax (2.4GHz + 5GHz) MIMO 2x2 Security: Open, WPA-PSK, WPA2-PSK, WPA3, etc.

Rate of 5G NR to WiFi : Up to 1.8Gbps

Support IPv4&IPv6

HTTP, HTTPS

DHCP Server, DHCP Relay, DNS, DDNS

SNTP

NAT, NAPT

Routing

VPN Passthrough PPTP/L2TP/IPSec Passthrough

Data Statistics

Firewall Port Forwarding, DMZ URL/Domain blocking MAC/IP filtering White/Black List

Management WEB, TR069 LED&Buttons

LED WiFi, 5G, 3/4G, WiFi, Ethernet

Buttons Power, Reset Environmental

Dimension: 160mm*72mm*53mm

Weight: 465g

Color: Black or White

Housing Material: Plastic

Power consumption: ≤24W

Input: DC 12V/2A ·ESD Protection: 8KV

Operating temperature: -10～+55°C

Operating humidity: 10～95%RH

Store temperature: -25～+70°C

Installation: Desktop
