Wavetel Wnr5601is An Industrial Cellular Router - China

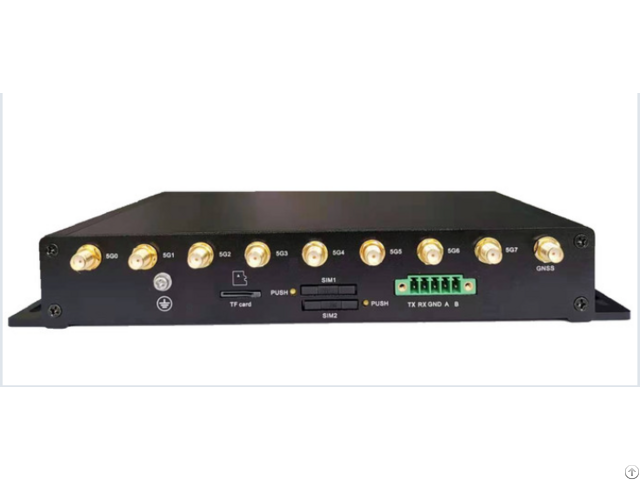

Hardware: ·5* 10/100/1000Mbps Ethernetport ·1* 100/1000Mbps SFPoptical port

·2* SIM card slot ·8*5G antenna ·2* WiFiantenna ·1* FUNC button ·1* GPS antenna ·1*TF Card Slot ·1*USB3.0(Type-C)

·1* 3 standard pinpower interface ​ Cellular: 5G/4G/3G

·3GPP Release 15, NSA&SA supported ·5G NR Sub-6GHz

DL MIMO 4x4, 256QAM

5G NR Peak Downlink Rate: 2.5Gbps 5G NRPeak Uplink Rate: 900Mbps

·LTE-A

DL MIMO 4x4, 256QAM Peak Downlink Rate: 1Gbps

Peak Uplink Rate: 200Mbps (Please contact us for more frequency bandscombinations) Data features: ·Multi-WAN

All GE portscouldbe configured as WANLoad Balancing

Failover between SFP, Ethernet and 5G

·VLAN: Support 802.1Q, QinQ ·VPN

PWE3, VPLS, MPLS

L2TP, EoIP, IPSec, GRE, OpenVPN ·Route

Static Route, Policy RouteRIP, ISIS, OSPF, BGP ·IPv4/v6

·DHCP Server, DHCP Relay, DNS, DDNS ·Quality of Service (QoS)

Algorithm: WRR, PQ, WRR+PQ

Port Rate Limit, ACL ·Firewall

Block Ping, DOS Attack Defense TCP SYN Flood Defense White/Black List

PAT, DMZ, SNAT·NTP ·Diagnosis

Ping, Traceroute, Syslog Environmental: ·Dimension: 235mm*135mm*3 5mm ·Structure design: High-duty metal case ·Power consumption: ≤18W

·Input: DC12V/1.5A

·Operating temperature: -30～+75°C ·Operating humidity: 10～95%RH ·Store temperature: -40～+85°C ·Installation:

Desktop, Wall-mounted, Din-Rail
