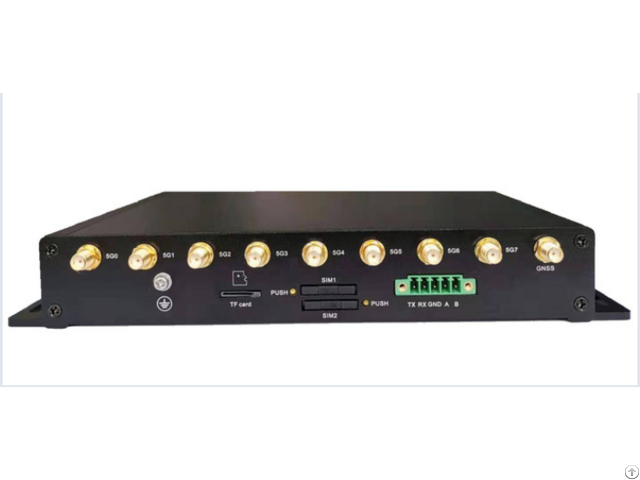

Wnr5601 5g Cellular Router - China

Hardware: ·5* 10/100/1000Mbps Ethernetport ·1* 100/1000Mbps SFPoptical port

·2* SIM card slot ·8*5G antenna ·2* WiFiantenna ·1* FUNC button ·1* GPS antenna ·1*TF Card Slot ·1*USB3.0(Type-C)

·1* 3 standard pinpower interface ​ Cellular: 5G/4G/3G

·3GPP Release 15, NSA&SA supported ·5G NR Sub-6GHz

DL MIMO 4x4, 256QAM

5G NR Peak Downlink Rate: 2.5Gbps 5G NRPeak Uplink Rate: 900Mbps

·LTE-A

DL MIMO 4x4, 256QAM Peak Downlink Rate: 1Gbps

Peak Uplink Rate: 200Mbps ·FrequencyBand:

5G: n1/3/5/7/8/20/28/38 /40/41/77/78/79 FDD-LTE: 1/3/5/7/8/18/19/2 0/26/28/32 TDD-LTE: 34/38/39/40/41/42/43 WCDMA: 1/3/5/6/8/19

(Please contact us for more frequency bandscombinations) Data features: ·Multi-WAN

All GE portscouldbe configured as WANLoad Balancing

Failover between SFP, Ethernet and 5G

·VLAN: Support 802.1Q, QinQ ·VPN

PWE3, VPLS, MPLS

L2TP, EoIP, IPSec, GRE, OpenVPN ·Route

Static Route, Policy RouteRIP, ISIS, OSPF, BGP ·IPv4/v6

·DHCP Server, DHCP Relay, DNS, DDNS ·Quality of Service (QoS)

Algorithm: WRR, PQ, WRR+PQ

Port Rate Limit, ACL ·Firewall

Block Ping, DOS Attack Defense TCP SYN Flood Defense White/Black List

PAT, DMZ, SNAT·NTP ·Diagnosis

Ping, Traceroute, Syslog Environmental: ·Dimension: 235mm*135mm*3 5mm ·Structure design: High-duty metal case ·Power consumption: ≤18W

·Input: DC12V/1.5A

·Operating temperature: -30～+75°C ·Operating humidity: 10～95%RH ·Store temperature: -40～+85°C ·Installation:

Desktop, Wall-mounted, Din-Rail

Company Contact:

• Posted By: Wavetel Technology Limited

• Phone: 17503018982

• Address: 16F, Olympic building, Economicdaily Rord, FuTian, Shenzhen , China

• Email:

• Website: https://www.wavetelco.com

• Business Description: Established in 2007 and headquartered in Shenzhen, China, Wavetel Technology is a leading telecom hardware and solution provider to clients: Telecom Operator, ISP, MVNO and ICT integrator etc, beginning its business with a series of Business Router.

  Over the past few years, we never cease our development of new products and have greatly enriched our production lines.

  Till now, Wavetel products cover a wide range of Wired &Wireless networking equipment and solutions, including 5G CPE, 5G Router, LTE Gateway, Business Router, Session Border Controller, M2M Router etc.

  With vertically integrated capabilities and extensive experience in telecom product R&D throughout China, especially in Shenzhen, Shanghai & Beijing.

  Based on the prominent resources integration, Wavetel could deliver the complete telecom access solution, like Enterprise Voice and Data access, Enterprise Private Network, Carrier-class Fixed wireless access etc.

  Not only being passionate about researching and development, Wavetel also devotes itself to serve the customers with sales technical support and multiple business solution support.

  As a part of our corporate culture, providing excellent service to our customers is our goal and customers requirement is our motive power.

  Wavetel has been doing our best to provide all our clients with accurate, fast, and professional service to their need.

  Persisting management reform to realize workflow operation with high efficiency.

  Currently, products are exported to all over the world, dozens of countries in five continents have been widely used in the public network and enterprise network, and the clients involve B2B network operators, home network operators, system integrators, and many other user groups.
