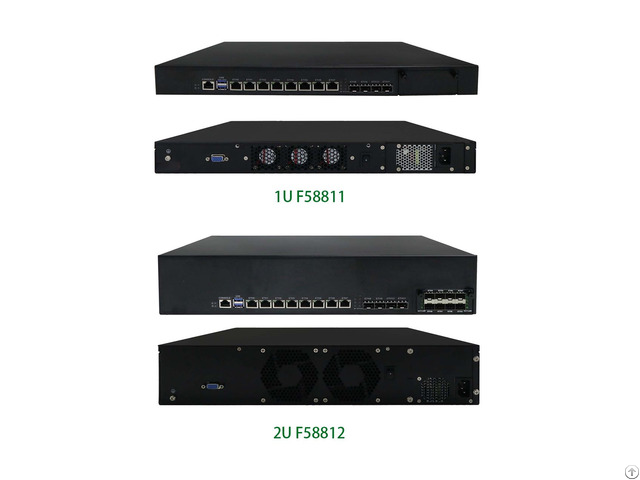

1u 2u Rackmount Network Security Appliances With Extremely Gen10 11 Processors - China

Rackmount network security appliance based on Intel® Rocket Lake family Intel® W580 Chipset, Network security appliance, 1u rackmount chassis, Its motherboard with W580 Chipset, Supports SATA3.0, mSATA, M.

2 multiple storages options and 4 ram slots MAX 128G RAM.

8x 2.5G RJ45, 3 channels bypass, 1 NMC slot, 250W PSU or 450W redundant PSU.

The cyber appliances widely deployed in a range of applications for network and cyber security including Unified Threat Management, IPS, IDP, SSL VPN, Load Balancing, Bandwidth Manager, Firewall, Bandwidth Management, Gateway security, WAN acceleration, Network Access Control, Web Filter, AntiVirus Wall, Core Switch, Server Load Balancing, Anti-Spam.

And runing with a perfect perforamance.

1u/2u, Intel W580 chipset, LGA1200 Socket, Intel ® Comet Lake & Intel® Rocket Lake family Model NO CPU Max.

RAM Storage LAN ports

(Initial) Max.

LAN ports

(Scalability) Bypass NMCs

F58811 Gen10/Gen11 Core and Xeon W-1200/1300 series CPU 128GB SATA3.0, mSATA, M.

2 8x 2.5G 12x by NIC

(SFP, SFP+, RJ45) 3 groups 1 NMC

F58214 Gen10/Gen11 Core and Xeon W-1200/1300 series CPU 128GB SATA3.0, mSATA, M.

2 2x 2.5G 32x by NIC

(SFP, SFP+, RJ45) Optional 4 NMCs

F58224 Gen10/Gen11 Core and Xeon W-1200/1300 series CPU 128GB SATA3.0, mSATA, M.

2 2x 2.5G 32x by NIC

(SFP, SFP+, RJ45) Optional 4 NMCs Features Supports Socket LGA1200/H5 Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor

Intel W580 chipset(Rocket Lake family)

Four 288pin 2933/3200MHz DDR4 slots, up to 128GB

Eight Intel 2.5G GbE port, Intel ethernet controllers, supports three channels bypass

One extension NMC slot for one NIC with more network RJ45/ SFP/ SFP+ interfaces

Supports SATA3.0, mSATA, M.

2 multiple storages options

Front USB3.0, Console interface and LED indicators

Specifications Motherboard CPU Intel Gen10/Gen11 i3/i5/i7/i9 Core, Xeon W-1200/1300 processor

Chipset Intel W580

System memory Four DDR4 slots, up to 128GB

Storage Interface Two SATA3.0 connectors, one mSATA and one M.

2 slot

Hard Drive Supports one 3.5/2.5" HDD tray

Ethernet LAN Port Eight 2.5G RJ-45 ports

Ethernet Chip Intel® Ethernet Controller I225-V

BYPASS Optional 3 channels BYPASS

Optical ports Four 1G SFP(Optional)

Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O USB Two USB3.0

COM One RJ-45 COM

Indicator One Power LED, one HDD LED

LCM module Optional 2x16 characters LCM display module

Video Built-in one VGA interface, support hot plug(Internal)

Expansion One NMC slot for extension NIC

Power supply Power consumption 250W power supply

Power input 100 ~ 240V AC input

Optional DC power or Redundant power

Environmental Mounting Supports rack-mounting or desktop-mounting

Operate Temperature -10°C ~ 50°C

Storage Temperature -20°C ~ 75°C

Operate Humidity 5% ~ 85% non-condensing

Storage Humidity 5% ~ 95% non-condensing

Mechanical Chassis Color Black or OEM

Front panel PVC/Aluminum front panel(OEM/Neutral)

Construction 1u chassis, Heavy duty metal

Dimensions (D x W x H) 450x430x45 mm

Weight 6.2 kg
