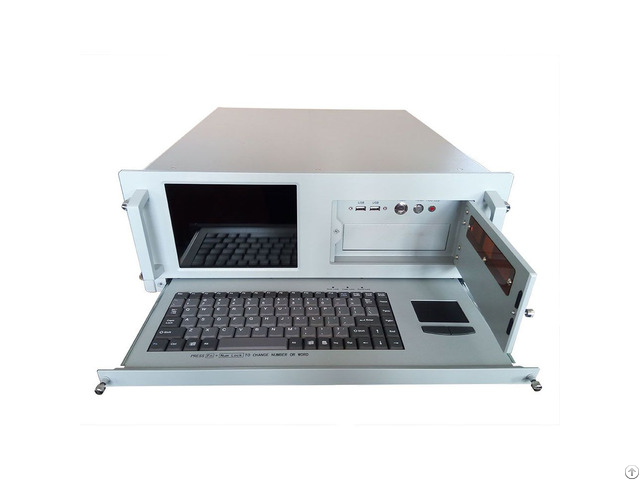

4u Industrial Rackmount Computer Chassis Supports Micro Atx Motherboard - China

4U Industrial rackmount computer Chassis supports ATX or Micro-ATX motherboard.

Rackmount 8 inches LCD All In One PC Chassis Workstation with keyboard and touchpad, supports full-size sbc or ATX/ Micro-ATX motherboard, 7/14 expansion slots.

RCWS-08N 4U rackmount chassis, 8"TFT LCD, for 14-slot PCI/ISA Backplane or ATX/ Micro-ATX motherboard foam factor

RCWS-08NT 4U rackmount chassis, 8"TFT LCD, touchscreen, for 14-slot PCI/ISA Backplane or ATX/ Micro-ATX motherboard foam factor Features 4U height Industrial computer Chassis supports ATX or Micro-ATX motherboard

Support Full-size CPU card or ATX/Micro-ATX motherboard foam factor

For ATX motherboard 7 expansion slots/ backplane 14 expansion slots

8"SVGA TFT LCD display Support 1024x768 pixels, 250 cd/m2 brightness

Built-in keyboard and Touchpad drawer

Shock-resistant drive bays to hold 1x 5.25" and 2x 3.5" drives

Signal input VGA and DVI interface

2xUSB Accessible from the front door

Support PS2 and redundant power supply

Power & HDD status indicator by front viewable LED indicator

Aluminiumfront panel, Heavy duty steel chassis

Specifications System Construction Compact 19" 4u Rackmount Heavy-Duty Steel Chassis

Disk Driver Bay 5.25" x1, 3.5" x2

Cooling Fan 2xcooling fan, with air filter andMoistureproof design

Keyboard Built-in full-function keyboard and touch pad.

OSD OSD function in front panel

I/O Connector Front panel: 2xUSB2.0

Rear panel: DVI, VGA, USB, PS/2(Optional)

LED indicators & Switch Power LED indicator(Green), HDD LED indicator(Red), PowerSwitch and reset

Color White LCD display Display type 8" XGA TFT LCD

Resolution 1024x768

Colors 16.7M Backlight LED

Luminance 250 cd/m2

Contrast Ratio 700: 1

View angle 110°(H), 120°(V) LCD MBTF 50, 000hrs Touchscreen(Optional) Type Resistive Touch Screen

Resolution continuous

Controller Interface Internal USB ( RS-232 interface option)

Light Transmission 80% or more

Operating Force 250g Environmental Oprerating Tempreture -20 °C to 60 °C

Storage Humidity 5% to 95%@ 40°C, non-condensing

Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration

Shock 10G peak acceleration (11 msec.

duration)

Safty FCC/VDE(Level A) Packing info Dimensions(WxHxD) 386mm x 141.6mm x 376 mm

Packing Dimension 590x390x550mm

NET weight 16 KG
