Bluetooth Low Energy Usb Dongle Development Kit - Taiwan

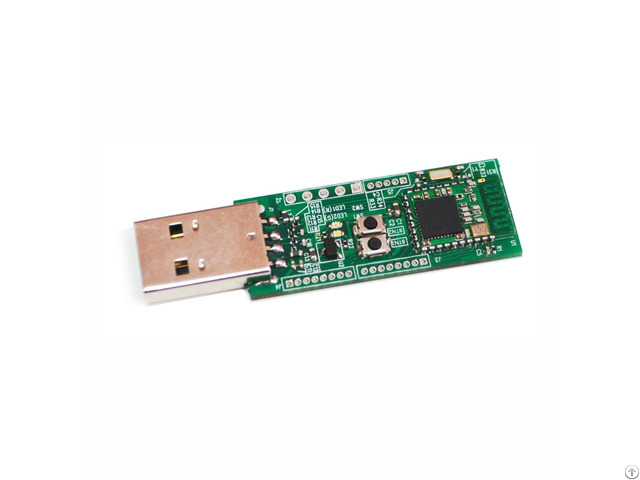

UDK-CC2540, USB Dongle is a development kit for user to design Bluetooth Low Energy (BLE) application with integrated USB to the system with existing USB host.

UDK-CC2540 USB Dongle contains a Bluetooth module BT02-2 using TI Bluetooth low energy controller CC2540 - TI CC2540 is a world-leading chip in Bluetooth Low Energy 4.0 and offers variety of peripherals such as USB, UART, SPI and Timer.

UDK-CC2540 USB Dongle also embeds a High-PSRR 300mA LDO, Buttons and LEDs, and General Purpose I/O Test Points.

The Dongle can let user focus on their project development and verify the project easily and rapidly.

FEATURES: * BT02-2 Bluetooth Module with TI CC2540 - Bluetooth version 4.0 low energy (LE, single mode) compliant - High-performance and low-power 8051 Microcontroller core with code prefetch - In-system-programmable flash, 256KB - 12-Bit ADC with eight channels and configurable resolution - 21 general purpose I/O - Full-Speed USB Interface - Power USARTs with support for several serial protocols - On board PCB Antenna and Crystal - Module dimension: 14.8 x 10mm * LDO - Fast Ultra High-PSRR, Low-Noise 300mA CMOS LDO - 3.3V Output Voltage * Variety of Individual Pin Header Sections - Flash Programming and Debugging - General Purpose I/O (GPIO) * Buttons and LEDs - Input / output function control * Dongle Dimension: 16mm x 41mm (PCBa) ; 16mm x 56mm (including USB connector)
