Compact Bluetooth Pc Mac Compatible Keyboard - Taiwan

FEATURES

WKB-803A, is at the forefront of cutting edge wireless keyboard with multi-host switchable feature (patented).

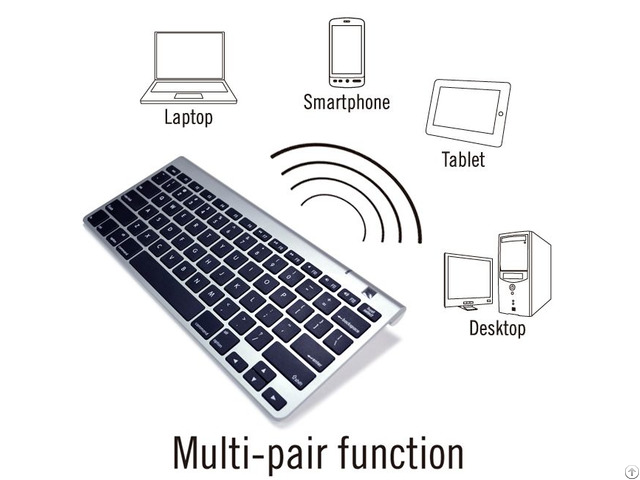

It is an ideal wireless keyboard for using iMac, iPad, iPhone or other Android OS Tablets in between, thanks to multi-host switchable feature.

This compact size keyboard comes equipped with Bluetooth 3.0 technology with 2 x AA batteries, scissor-type key mechanism among many other features.

SPECIFICATION

Key Number : 78/ 79 keys (US/ EU) Scissor-type Key Switch

Tx Technology : Bluetooth® wireless technology, V3.0

Feature key : “ host select “ key + 1, 2 ~ 8 keys for host select

HTN Display : 1 digit HTN display, monochrome

Number of Host Register : Register up to 8 different Bluetooth hosts

Antenna/ Antenna Gain : PCB antenna / 0 dBi (Typ)

Frequency/ Channels : 2.402Ghz ~ 2.480Ghz/ 79 channels

Modulation : GFSK (Differential phase shift keying)

Output Power : Normal mode (GFSK): -0.61 dBm

Data Rate / Sensitivity : Up to 2.1Mbps / <0.1% BER at -70dBm

Operating Range : Up to 8 M (Free space)

Key Switch : Scissor-type Membrane with 5 million life cycle time

Key Force/ Traveling Distance : 55 +/- 7 gm; 2.1 +/- 0.2 mm

LED Indicator : Indicate pairing (blinking), Host link in blue LED, CapLock (5 Min.

Max.

) and Low battery (blinking slowly)

Function Keys for Mac : F1 Decrease Brightness, F2 Increase Brightness, F3 Expose, F4 Dashboard

Holding Fn Keys for Windows : Fn + F1 = help etc.

Switch / Button : 1 x power switch, 1 x pairing button

Power Source : 3.0 VDC, 2 x AA Alkaline batteries

Operating Temperature : 0 to 50 degrees Celsius (10% to 95% RH, 25 degree Celsius)

Storage Temperature : -10 to 65 degrees Celsius (5% to 90% RH, 25 degree Celsius)

Dimension (mm) : 285.0 (L) x 132.0 (W) x 18.5 (H)mm

Compatibility : Compatible with Windows XP or later, Mac OS 10.6 or later, Android OS of smart phone and Tablets

Accessories : 2 x AA batteries, 1 x User’s manual

Packing Information : TBD

Company Contact:

• Posted By: DIGIMORE ELECTRONICS CO., LTD.

• Phone: 886-2-23113299

• Address: 10 FL., No. 61, Yan-Ping S. Rd, Taipei , Taiwan

• Email:

• Website: https://www.capacity-keyboard.com

• Business Description: Digimore Electronics Co., Ltd was established in 2004, located in Taiwan.

  Over 20 year experience engineers of PC keyboard design, Digimore has successfully developed a variety of Desktop Keyboards, Membrane-type capacity Gaming keyboard with full N-key rollover support, POS keyboard built-in smart card reader/ magnetic stripe card reader, Programmable POS keyboards, numeric keypads and etc.

  In 2011, we launched several new products of Bluetooth keyboards such as Mac Compatible Keyboards with multi-host switchable support, Bluetooth Keypad and etc.

  We also launched 1st one of low-profile smart card USB keyboard in the world specially designed for Mac.

  In 2016, We've started to provide ODM services with different modules including biometric/ fingerprint modules, keyboard modules and touch pad module for KVM, Bluetooth 3.0, 4.2 & 5.0 module, Bluetooth LaunchPad, 433 Mhz ASK Transmitter and Receiver modules, 2.4 Ghz GFSK Transceiver module, Keyboard Controller, Qi wireless charger module, NFC Forum Type 4 TAG module and etc.

  Thanks to our capability of logic design, we are able to meet customer's demand and to provide excellent, value for money products.

  Your solution provider is in the heart of our business.
