Df Industrial Panel Pc Supports Rs422 Rs485 Rs232 - China

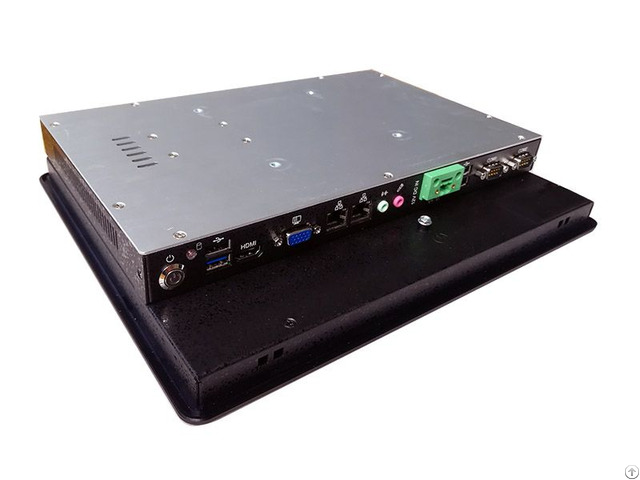

IPC-12DF is an industrial grade Panel PC with resistive touch screen, Aluminum panel with Ip65 rate.

It's supports Win7/Win8/Win10, Linux and ideal for applications in Industrial environment.

12.1" XGA TFT LCD Panel support 1024x768 pixels

5mm Aluminum front bezel with resitive touch screen

Intel Celeron J1900 Quad Core 2.0G CPU

Supports Win7/Win8/Win10, Linux

2 x COM(1x RS232 + 1x RS422/RS485/RS232), 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC

1* Mini PCIe slot for wifi optional

Standard DC 12V input (optional Wide range DC 9-36V input)

Panel ( Flush ) mount with clips

Standard VESA 100mm hole support stand, wall mount and swing arm

Specifications

System

Processor Intel Celeron J1900

Chipset Intel Bay trail SOC

Memory DDR3 4G RAM (Max 8G)

Storage HDD/SSD size optional

Ethernet 2 x 100/1000 LAN ports

Video 1 x VGA, 1x HDMI

Audio 1x Mic-in / Line-out

USB Port 3 x USB 2.0, 1x USB3.0

Serial Port 2 x COM(1x RS232 + 1x RS422/RS485/RS232)

Power switch 1 x power switch

Expansive Slot 1 x Mini PCIe

Power supply DC12V input (Optional 9-36V), 100~240V AC, 50/60Hz, external ac adapter

Construction Front aluminum bezel(5 mm) and steel chassis

LCD display

Display Type 12.1" XGA TFT LCD(LED backlight) Resolution 1024 x 768 Max.

color 16.2M Luminance 400 cd/m2 View Angle 150°(H), 135°(V) Pixel Pitch 0.297 x 0.297 mm Contrast Ratio 300: 1 Response Time 8 ms LCD MTBF 50, 000hrs Available Options

Touch screen Resistive type touch screen Wireless LAN Meet IEEE802.11b/g standard(WiFI) DC Power Input Wide Range 9~36v DC input Environmental

Operate temperature -10°C~ 60°C (-14~140°F)

Storage temperature -20°C ~ 70°C (-4 ~ 158°F)

Storage humidity 5% to 95% @40°C non-condensing

Anti-Vibra tion 17HZ-500 HZ 1G PTP Anti-Shock 1G / peak( 11m sec) Power supply

Input 100~240VAC, 50/60Hz, external ac adapter with lockable connector Output DC12V, output 32W Packing info

Dimensions (WxHxD) 315 x 250 x 49mm Weight Net: 4.6kg, Gross: 6.8 kg
