Hcipc B201 M22 Hcl Sj1900 4lc Intel J1900 Cpu 4lan 82583v Mini Router Firewall System - China

Products Feature:

u INTEL Quad Core J1900 CPU +ICH8M chipset

u 4x Intel 82583V 1000LAN

u 1*DDR3 SO DIMM, MAX 4G

u 1*VGA, 1*USB3.0+1*USB2.0

u Powersupply 12V 5A Adaptor High performance:

The structure is designed to meet the network security standard, low power consumption, high performance, cost-effective Series No.

B201-M22 Model HCL-SJ1900-4LC

Platform Intel

Chassis Colour Black

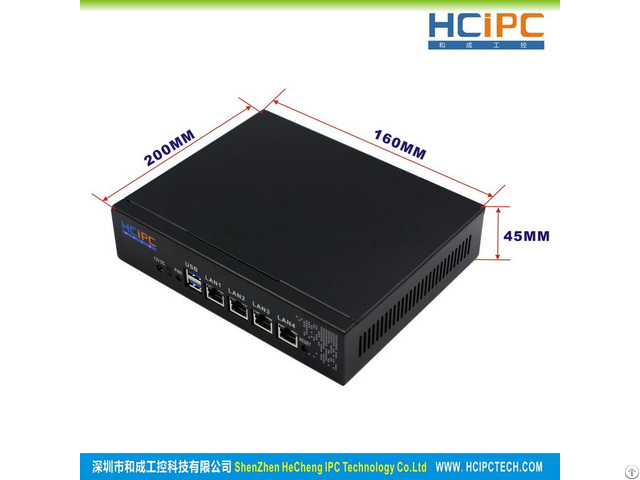

Size 200*160*45MM ( L*W*H)

Structure Heavy-duty & Rugged steel Material High Strength Fine Steel Casting Iron

Package size 2KG

Net Weight 1.4KG

Motherboard Model M501-2 LAN-J1900T-4L M

CPU Intel Atom Bay Trail J1900 processor

Chipset Intel J1900

Memory 1x SO-DIMM, DDR3 Max 4GB

Storage Harddisk 1 x System LAN 4x Intel 82583V 1000LAN

USB 2 x USB2.0

COM 1 x R232 Display 1 x VGA

PS/2 1PCS

Wifi 1 x Wifi

Cooling System 2x System Fan

System Control Power On/Off button LED Indicator PWR_LED, HDD_LED

PWR Power Mode 12V 5A Adaptor

Feature 110-240V Connector

Reliability Installation 1U Rack mount

Operation Temp -5~55°C

Storage Temp -40~80°C

Relative Humidity 10%~80%, Relative humidity, no-condensing

Remarks Products Update without notice, special requested, please confirm in advance.

Motherboard Model：M501-2 LAN-J1900T-4L M
