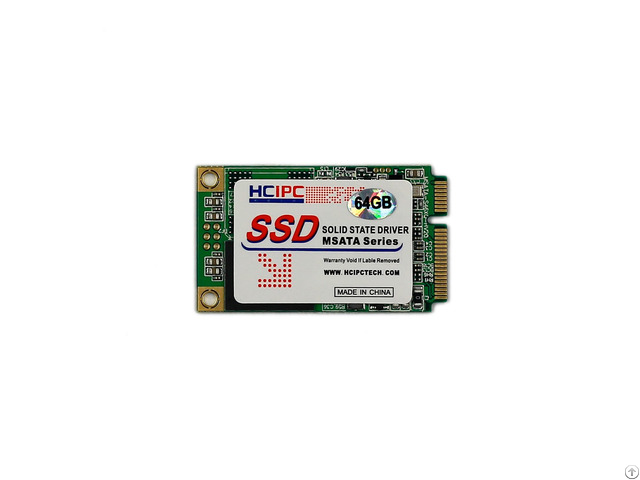

Hcipc P201 5 P3msm 64gb Sata3 Mini Pcie Ssd Industrial Storage - China

Model P201-4 P2MSM-64G2B SATA3 General Interface SATA3 6.0 Gbps　

Dimensions 50.95 x 30 x 3.6mm　

capacity 64GB

Storage Media MLC NAND Flash Performance Sustained Read up to 350MB/s

Sustained Write up to 85MB/S Power Consumption input Voltage 3.3V

Idle 0.2W

Active 1.5W Reliability& Endurance Wear-Leveling Dynamic and static wear-leveling

Data Retention 10years at 26ºC

MTBF >200 W >2, 000, 000hours

Bad Block Management Auto Bad Block Management in system

ECC Supports BCH ECC 72bits in 1K bytes Warranty Time limit 2 years Environment Operating Temperature 0~+70 ºC

Storage Temperature -40~+100 ºC

Shock 1000G

Vibration 15G

Ambient Humidity 5%-95% Available unit NO EOL

Testing OS Windows 7 64bit Testing Platform Mainboard: ASUS B75M-A;CPU: G1620 2.7Ghz;DRAM: DDR3 2GB Testing Software Crystal Disk Mark 3.01x64

Note: Electrical specifications and weight will vary with different capacity of products.

And very lot of Flash model many not exactly same, but we sure the quality all are good.
