Heavy Duty Keyboard With Magnetic Stripe Card Reader - Taiwan

FEATURES

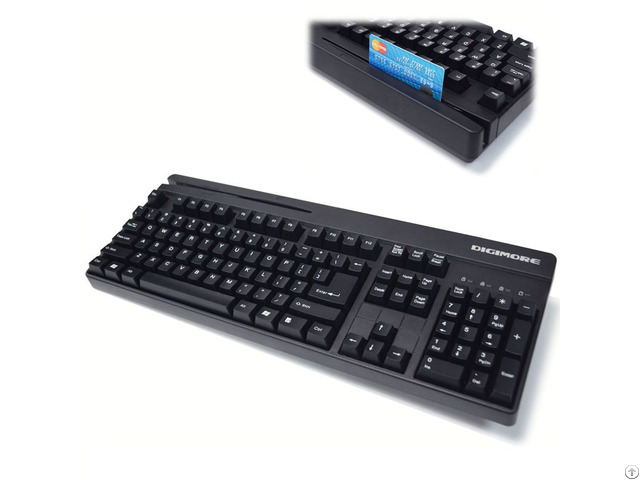

Digimore POS Keyboard, KB-6868-MSR, features an enhanced keyboard layout with a built-in 3 tracks magnetic stripe reader for use in banking Point of Sale application and secure Credit Cards.

This full-sized keyboard is designed for any desktop, kiosk, office, or warehouse.

The Membrane Key Switches provide long lasting and durable action and good tactile feeling.

KEYBOARD SPECIFICATION

Key Number : 104/105/ 109 Keys (US/ EU/JP)

Key Switch : Membrane with 20 million life cycle time

Key Force/ Traveling Distance : 50 +/- 7 gm; 4 +/- 0.5 mm

Key Caps : Ergonomic keycap design with 5 different height

Input Power : 5 VDC, 100mA

Interface USB : 1.1 version; (PS/2 mini-DIN, optional)

Led Indicator : 4 LEDs, Num Lock, Caps Lock, Scroll Lock, MSR Read/ Write

MAGNETIC STRIPE CARD READER SPECIFICATION

Number of Tracks : Track 1 & 2 or Track 1, 2 & 3

Compatibility : ISO 7810 and 7811-1 through -6 cards/ Reads AAMVA driver license cards

Communications : Decoded track data sent through keyboard communication cable

Output Data Formatting : Default card data output format or customized data output format is programmable through PC configuration utility.

(please refer to user’s manual)

Operating Life : 1, 000, 000 card swipes

Card Speed Range : 3 to 60 IPS (inches per second)

Audio Beeper : Indicates error free card data reading

Options - Encryption key : Also provide key Injection, Production Injection and TG3 Key Injection

OTHERS

Environment Operating Tem.

: 0 ~ 50 degrees Celsius (10 ~ 95% RH, 25 degree Celsius)

Storage Tem.

: -10 ~ 65 degree Celsius (5% ~ 90% RH, 25 degree Celsius)

Physical Dimension : 450.17 (L) x 171 (W) x 37.29 (H)

Box/ Weight : 500 (L) x 220 (W) x 55 (H) mm / 1.3 Kg (G.W.)

Packing Information : QT’Y / Carton 5 pcs/ctn; 1.39 cuft/ctn; 8.5 kgs (G.W.);

Carton Size : 51.5 x 30.5 x 25 cm
