Heavy Duty Usb Keyboard Built In Msr And Scr - Taiwan

FEATURES

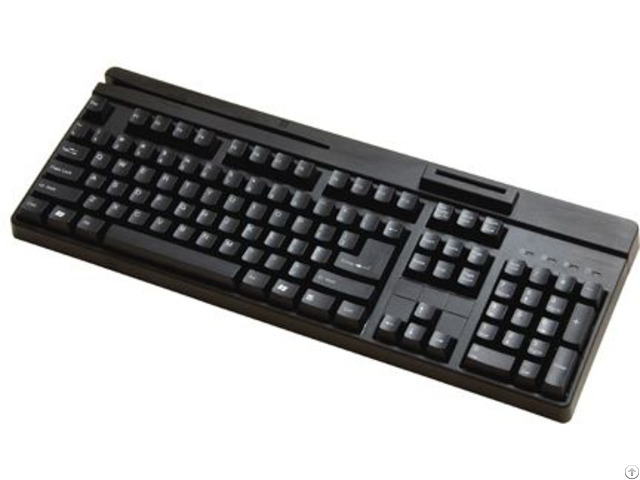

Digimore KB-6868-MS, Heavy-duty Magnetic Stripe Reader Keyboard features a 104-key keyboard layout with a built-in Smart Card Reader (SCR) for banking transactions, identification systems, secure login and for secure Credit Cards.

Combining the latest magnetic stripe and smart card reading technology, the KB-6868-MS offers the utmost POS keyboard performance and longevity to the general market.

Not only is it ideal for any retail environment, but also a perfect tool for PC security, health care office, identification, and much more.

SPECIFICATION

Keyboard

Key Number : 104/105 Keys (US/ EU)

Key Switch : Membrane with 20 million life cycle time

Key Force/ Traveling Distance : 50 +/- 7 gm; 4 +/- 0.5 mm

Led Indicator : 4 LEDs, Num Lock, Caps Lock, Scroll Lock, MSR Read/ Write

Input Power / Interface : 5 VDC, 100mA / USB 1.1 version; (PS/2 mini-DIN, optional)

Key Cap : Ergonomic keycap design with 5 different height

Magnetic Stripe Card Reader

Number of Tracks : Track 1 & 2 or Track 1, 2 & 3

Compatibility : ISO 7810 and 7811-1 through -6 cards/ Reads AAMVA driver license cards

Communications : Decoded track data sent through keyboard communication cable

Output Data Formatting : Default card data output format or customized data output format is programmable through PC configuration utility.

See Appendix A for default settings

Operating Life : 1, 000, 000 card swipes

Card Speed Range : 3 to 60 IPS (inches per second)

Audio Beeper : Indicates error free card data reading

Options - Encryption key : Also provide key Injection, Production Injection and TG3 Key Injection

Smart Card Reader

Standard : ISO7816

Protocols : T=0, T=1.2-wire; SLE 4432/42 (S=10), 3-wire; SLE4418/28 (S=9), 12C (S=8)

Reading Speed/ Frequency : 420 Kbps / up to 8MHz

Card Type Support : 5V, 3V and 1.8V smart card ISO 7816 Class A, AB and C

API Support : PCSC, CTAPI, Synchronous-API, OCF

PCSC Driver Support : Windows 98/ME/2K/XP (32bit), 2003 Server Win, Win NT, Windows CE5.0/ CE.

NET, Windows XP 64bit, Windows Vista (32bit/ 64bit), Windows 7, Linux

Reliability : 100K card insertions (500K life cycle time also available)

Others

Physical Dimension : 450.17 (L) x 171 (W) x 46.37 (H)

Box / Weight : 500 (L) x 220 (W) x 55 (H) mm/ 1.3 Kg (G.W.)

Packing Information : 5 pcs/ctn; 1.39 cuft/ctn; 8.5 kgs (G.W.); Carton Dimension: 51.5 x 30.5 x 25 cm
