Heavy Duty Usb Keyboard With Smart Card Reader - Taiwan

FEATURES

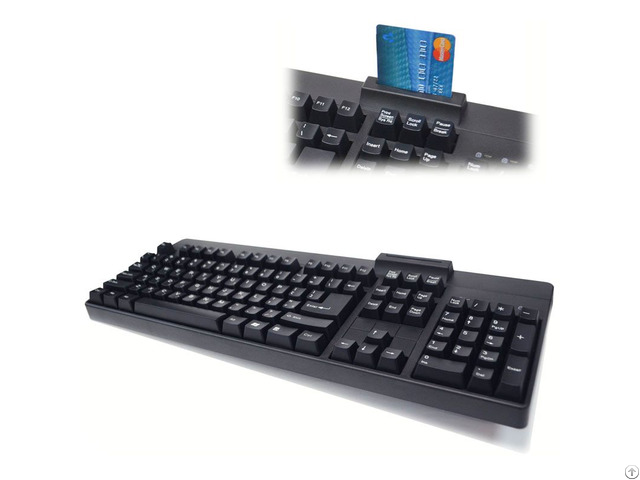

The Digimore Heavy-duty Smart Card USB Keyboard, KB-6868-SCR is design for use with smartcard enabled identification system.

It is ideal for providing user authentication for applications such as network login, e-government, e-commerce, healthcare and etc.

This keyboard works with all Works with all smart cards that comply with ISO 7816 Class A, AB and C memory and microprocessor smart cards (T=0, T=1).

SPECIFICATION

keyboard

Key Number : 104/ 105/ 109 keys (US/ EU/JP)

Key Switch : Membrane with 20 million life cycle time

Key Force/ Traveling Distance : 50 +/- 7 gm / 4 +/- 0.5 mm

Input Power/ Interface : 5 VDC, 100mA / USB 1.1 version (smart card reader USB 2.0)

Key Cap : Ergonomic keycap design with 5 different height

Operating Temperature : 0 to 50 degrees Celsius (10% to 95% RH, 25 degree Celsius)

Storage Temperature : -10 to 65 degrees Celsius (5% to 90% RH, 25 degree Celsius)

Smart Card Reader

Standard : ISO 7816

Protocols : T=0, T=1.2-wire; SLE 4432/42 (S=10), 3-wire; SLE4418/28 (S=9), 12C (S=8)

Reading Speed/ Frequency : 420 Kbps / up to 8MHz

Card Type Support : 5V, 3V and 1.8V smart card ISO 7816 Class A, AB and C

API Support : PCSC, CTAPI, Synchronous-API, OCF

PCSC Driver Support : Windows 98/ME/2K/XP (32bit), 2003 Server Win, Win NT, Windows CE5.0/ CE.

NET, Windows XP 64bit, Windows Vista (32bit/ 64bit), Windows 7, Linux

Reliability : 100K card insertions (500K life cycle time also available)

Others

Physical Dimension : 450.17 (L) x 171 (W) x 46.37 (H)

Box / Weight : 500 (L) x 220 (W) x 55 (H) mm/ 1.3 Kg (G.W.)

Packing Information : 5 pcs/ctn; 1.39 cuft/ctn; 8.5 kgs (G.W.); Carton Dimension: 51.5 x 30.5 x 25 cm

Company Contact:

• Posted By: DIGIMORE ELECTRONICS CO., LTD.

• Phone: 886-2-23113299

• Address: 10 FL., No. 61, Yan-Ping S. Rd, Taipei , Taiwan

• Email:

• Website: https://www.capacity-keyboard.com

• Business Description: Digimore Electronics Co., Ltd was established in 2004, located in Taiwan.

  Over 20 year experience engineers of PC keyboard design, Digimore has successfully developed a variety of Desktop Keyboards, Membrane-type capacity Gaming keyboard with full N-key rollover support, POS keyboard built-in smart card reader/ magnetic stripe card reader, Programmable POS keyboards, numeric keypads and etc.

  In 2011, we launched several new products of Bluetooth keyboards such as Mac Compatible Keyboards with multi-host switchable support, Bluetooth Keypad and etc.

  We also launched 1st one of low-profile smart card USB keyboard in the world specially designed for Mac.

  In 2016, We've started to provide ODM services with different modules including biometric/ fingerprint modules, keyboard modules and touch pad module for KVM, Bluetooth 3.0, 4.2 & 5.0 module, Bluetooth LaunchPad, 433 Mhz ASK Transmitter and Receiver modules, 2.4 Ghz GFSK Transceiver module, Keyboard Controller, Qi wireless charger module, NFC Forum Type 4 TAG module and etc.

  Thanks to our capability of logic design, we are able to meet customer's demand and to provide excellent, value for money products.

  Your solution provider is in the heart of our business.
