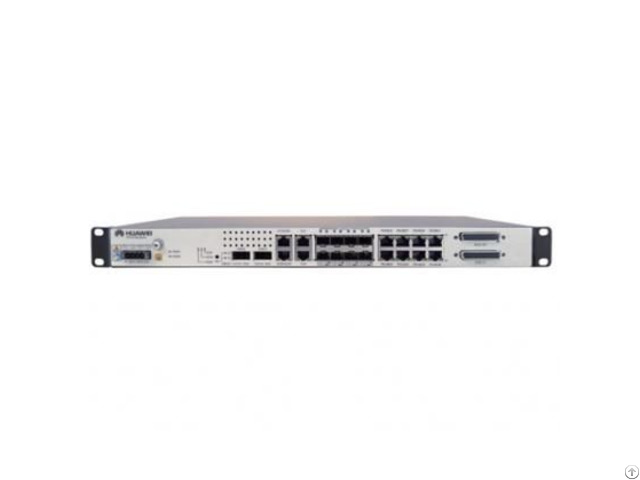

Huawei Atn 910 And1ml1 And1ml1a 16 Channels E1 Electrical Interface Board - China

Huawei ATN 910 AND1ML1/AND1ML1A - 16 Channels E1 Electrical Interface Board

Huawei network Routers Function and Feature Remarks

Basic function Provides 16 E1 interfaces.

Supports the hot swappable function.

Detects the temperature and voltage of the board.

Interface function Impedance supported by the interface AND1ML1: 75 ohm AND1ML1A: 120 ohm Supports the E1 and CE1 modes.

Supports the master clock mode (unconfigurable).

Supports the HDB3 line coding (unconfigurable).

Supports inloops and outloops.

Supports the PRBS function in framed or unframed mode of an E1 interface in the receive/transmit direction.

ATM Number of supported ATM E1 services 16 Number of supported IMA groups 16 Maximum number of E1 links in each IMA group 16 Encapsulates ATM VPC/VCC service to the PWE3 in the N-to-1 (N≤32) or 1-to-1 format.

Supports the ATM bundle function.

Number of supported PVCs/PVPs 256 Number of supported local ATM CCCs 32 Number of supported remote ATM PWE3s 64

TDM Supports CES services in CESoPSN and SAToP modes.

Supports the timeslot compression function.

For services in CESoPSN mode, a minimum of 2 timeslots can be bundled during serial port configuration.

Supports the fractional E1 - Different timeslots of an E1 can be bound to different CES PWs.

Number of supported local TDM CCCs 8 Number of supported remote TDM PWE3s 16

PPP Number of supported PPP links 16 Number of supported ML-PPP groups 8 Maximum number of links supported by each ML-PPP group 16
