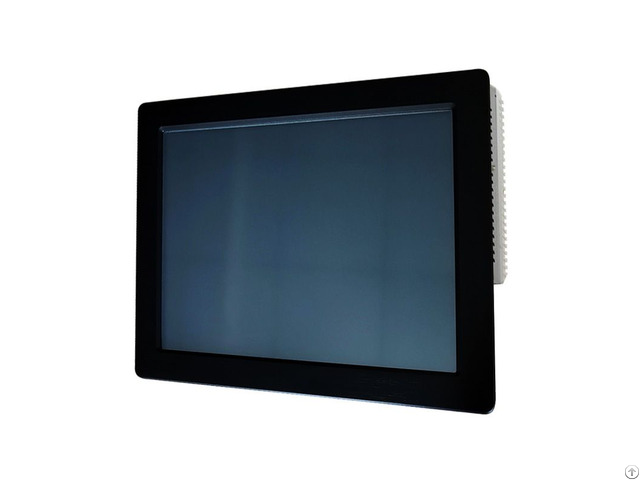

Industrial 15 Inch Lcd Computer Fanless Panel Pc - China

Main System of the panel pc

CPU Onboard IntelIntel® Celeron® Processor J1900 processor

Chipset Intel Bay trail SOC

System Memory Preload 2GB Ram(Max 8G)

HDD (hard disk ) 2.5" SATA HDD/SSD; Preload 500GB HDD

LAN 2x Realtek ® RL8111x (Gigabit) 10/100/1000Ethernet

Graphic IntelHD chipset

Audio Realtek ® ALC662, 5.1 channel surround Audio

I/O Connector 3~5 x RS-232

1 x RS422/485

1 x HDMI

1x DB-15 Connector

1x Audio (Mic-in / Line-out)

2x 10/100/1000MLAN port ( RJ-45 ) 3 x USB2.0, 1 x USB3.0

1x 3Pin DC power input terminal block

Expansion 1x Mini PCIe slot

General

Construction Aluminum front bezel and Aluminum chassis

OS Support Windows 10/8/7, Windows XP, Linux

Mounting Panel mount or Standard VESA 100mm

Power supply DC Input Voltage : 12v, with External AC adapter; Output Rating 28W

Optional Wide range DC 9-36V input

LCD display

Display type 15" XGA TFT LCD LED Backlight

Resolution 1024 x 768 pixels

Contrast Ratio 700: 1

Luminance 450 cd/m2

Viewing angle 160°(H), 140°(V)

ResponseTime 12 ms

LCD MBTF 50, 000hrs Touchscreen of the panel pc

Type Resistive touch screen

Controller Interface Internal USB interface controller

Resolution Continuous

Light Transmission 81% or more

Operating Force ≤100g

Life Expectancy 35 Million

Environmental

Operate Temperature 0 ~ 50°C (32 ~ 125°F)

Storage Temperature -20 ~ 60°C (-4 ~ 140°F)

Humidity 10% to 90%@ 40°C, on-condensing

Vibration 17 to 500HZ 1G PTP

Operating Shock 1G /peak ( 11m sec)

Ingress Protection Front panel IP65/NEMA4

Packing info of the panel pc

Dimensions(WxHxD) 406x 312 x 68mm

NET weight 7.5 KG
