Network Applicaiton Box Pc 6 Usb 2 Com Intel N100 N305 Cpu 4x I226 Lan - China

Model NO.

MPC-N1024/MPC-N3024 Place of Origin: China

OEM/ODM accepted Datasheet Download [2] Images

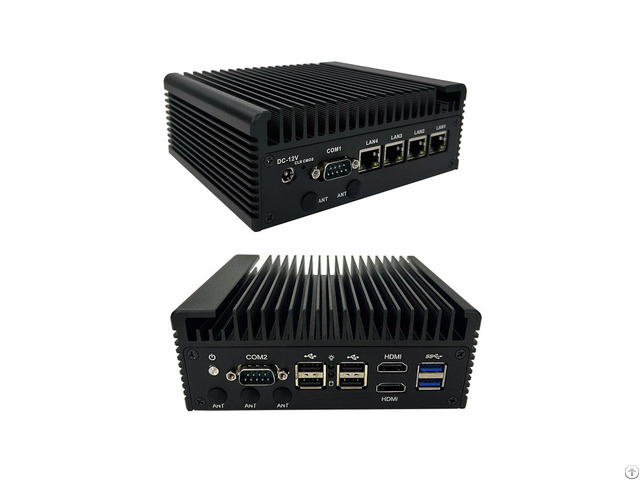

BOX PC, Fanless design mini PC for network application, Intel N100 CPU, 4x Intel i226 2.5GbE LAN, 2x COM, 2x HDMI, 1x TypeC, 4x USB, DC 12 input.

Model NO CPU I/O Datasheet

MPC-N1024 Intel N100 4x 2.5GbE LAN, 2x COM, 2x HDMI, 6x USB, 1x SIM Datasheet (PDF)

MPC-N1022 Intel N100 2x COM, 2x GbE LAN, 1xVGA, 1XDP, 1x HDMI, 1x TypeC, 5x USB, 1x Audio Datasheet (PDF)

MPC-N3024 Intel N305 4x 2.5GbE LAN, 2x COM, 2x HDMI, 6x USB Datasheet (PDF)

MPC-N3022 Intel N305 2x GbE LAN, 2x COM, 1XDP, 1x HDMI, 1x TypeC, 5x USB, 1x Audio Datasheet (PDF) Features

Intel® N100 (6M Cache, up to 3.40 GHz) processor 1x DDR5 4800MHz so-DIMM slot, up to 16GB 4x Intel i226 2.5G controllers 1x M.

2_WIFI/4G interface, 1x mini PCIE 1x SATA3.0, 1x M.

2 SSD (NGFF/PCIE adaptive) 2x COM (RS-232), COM1 can switch to RS-485 signal 2x HDMI 2x USB3.0, 4x USB2.0 TPM2.0 hardware encryption (optional) DC 12V power supply Supports Win10/Linux Specifications

Motherboard

CPU Intel N100 BIOS 64Mb Flash ROM System memory DDR5 4800MHz so-DIMM slot, MAX 16GB RAM Storage

SATA One SATA3 6Gb/s socket MSATA One mSATA3 socket CF slot None Ethernet

LAN Port Four RJ-45 ports Ethernet Controller Four Intel i226 2.5G network Controllers System I/O

Display one HDMI USB Two USB3.0, Four USB2.0 COM Two COM(COM1 RS232, COM2 RS232/RS485) Audio One Line out and MIC two-in-one jack Power switch One switch with Led Indicator One HDD Led Expansion 1* Mini-PCIe Power supply

Power consumption DC 12-19V External power adapter Power input 100 ~ 240V full range AC input Environmental

Operate Temperature -10°C ~ 60°C Storage Temperature -20°C ~ 70°C Operate Humidity 5% ~ 85% non-condensing Storage Humidity 5% ~ 95% non-condensing Mechanical

Chassis Color Black Construction Aluminum extrusion chassis Dimensions (D x W x H) 127x145x37 mm Weight 1.5 kg
