Smart Card Usb Keyboard For Mac Low Profile - Taiwan

FEATURES

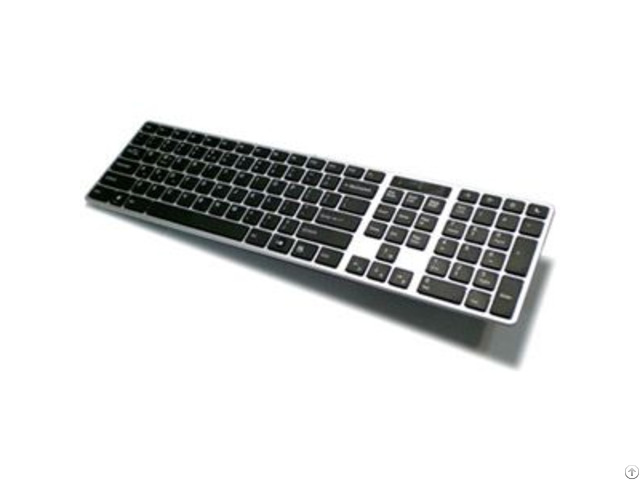

With the latest technology of IC card reader, the KB-801S, stylish & low profile smart card USB keyboard is especially designed for Mac system and to meet your security needs in different applications such as in E-Banking, E-Payment, Transportation, E-Government.

Being PS/SC and CCID complaint device, the KB-801S is easy to install and use a sit is specifically designed to be integrated in a PC environment.

Its drivers are compatible with Mac OS.

KEYBOARD SPECIFICATION

Key Number : 110/ 111 keys (US/ EU)

Key Switch : Scissor-type Key switch

Switch Life Cycle : 5 millions life time rubber dome

Key Force / Travel Distance : 55 +/- 7gm; 2.1 +/- 0.2mm

LED Indicators : CapLock, Read/Write LED indicators

Input Power / Interface : 5VDC, 100mA; USB 1.1 version

Mac Function Keys : F1 less brightness, F2 more Brightness, F3 Expose, F4 Dashboard

SMART CARD READER SPECIFICATION

Standard : ISO7816 Class A, B and C ( 5V, 3V, 1.8V ), T=0 and T=1

Read & Write Speed : 344 Kbps / up to 4MHz

Compliance : PC/SC, CCID

PC/SC Driver Support : Mac OS 10.5 or later version/ Linux

Reliability : 100 k card insertion

Memory card supports

Cards following the I2C bus protocol (free memory cards)

Atmel : AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024

SGS-Thomson : ST14C02C, ST14C04C

Gemplus : GFM1K, GFM2K, GFM4K, GFM8K

Cards with intelligent 256 bytes EEPROM and write protect function SLE4432, SLE4442, SLE5532, SLE5542

Cards with intelligent 1K bytes EEPROM and write-protect function SLE4418, SLE4428, SLE5518, SLE5528

Cards with '104' type of EEPROM (non-reloadable token counter cards) SLE4406, SLE4436, SLE5536, SLE6636

Cards with secure memory IC with password and authentication AT88SC153, AT88SC1608

Cards with Intelligent 416-Bit EEPROM with internal PIN check SLE4404

Cards with Security Logic with Application Zone AT88SC101, AT88SC102, AT88SC1003 Supports

Dimension (mm) 434.2 (L) x 115.3 (W) x 25 (H) including rubber feet
