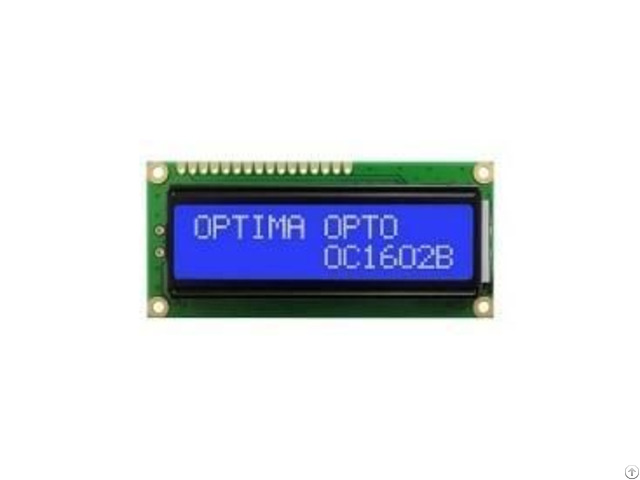

Stn Character Module - Taiwan
price: contact company for price
Model: OC1602B
Resolution: 16 x 2
Power supply: 5V
Interface: 6800
IC: ST7066
Duty/ Bias: 1/16 Duty/ 1/5 Bias Mechanical Data:
Monochrome Character LCD modoule is featured stable and standard design which enable to digitize your product through a single chip controlled.
This type of LCD display is able to perform better than the LED segment display with user experience.
Our 16x2 LCD module can apply for industrial equipment such as medical, white goods, communication, entertainment field.
etc.
You may choose Reflective/ Tranflective/ Tranmission as polarizer film, TN/ STN/HTN/FSTN as LCD types, Yellow Geen/ Blue/ Black as LCD color, White/ Blue/ Yellow Green/ Green/ Red/ Amber, etc.
as LED backlight color.
Custom design per your needs is very welcomed too.
Item Dimension(m*m)
Module dimension: 80.0 x 36.0
View area: 66.0 x 16.0
Active area: 56.20 x 11.50
Dot pitch: 0.6 x 0.7
Company Contact:
- Posted By: Optima Opto Co., Ltd
- Phone: 886-4-35051156
- Address: 7F-2, No. 366, Beitun Rd., Beitun Dist., , Taichung City, Taiwan , Taiwan
- Email:
- Website: https://www.optima-opto.com.tw
Published date: October 24, 2023
- Business Description: Optima Opto is aiming to be the best partner of display solution by delivering design and manufacture high quality display products.
We offer strong R&D capability on LCD, LCM, TFT, OLED display and integration of control solution technologies, with not only the wide range standard models but also customize display solutions.
Optima Opto is specialized in communication, industry, medical, home appliance, automotive and industrial field, the integral of LCD display and control solution provide more options to the customers who need supports other than the display parts.
