30dbm Output Compact Full Functional High Power Fiber Amplifier Module - USA

price: 3783.00 Dollar US$

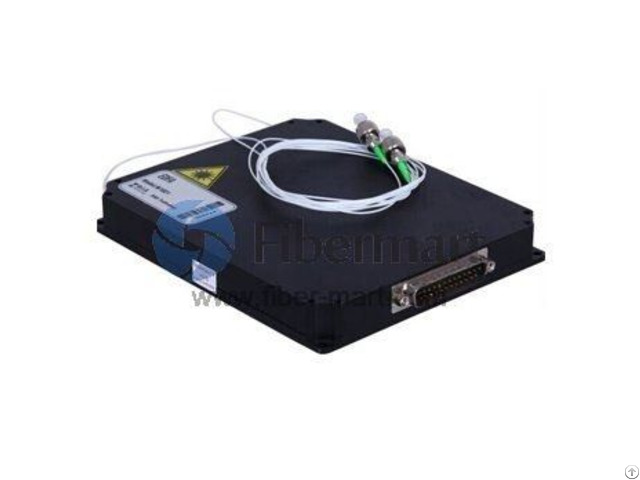

30dBm Output Compact Full Functional High Power Fiber Amplifier Module

This Compact Full Functional High Power Fiber Amplifier Module is a kind of C-Band, high power and full-function optical fiber amplifier module.

The key components of the product are high reliability multimode PUMP laser and the double cladding optical fiber.

The module has standard RS-232 or RS-485 interface, adopts high reliable and low power consumption design as well as adopts APC, AGC, ATC and ACC control modes.

The high stability and high precision MPU system to ensure the control, adjustment and display are intelligent andeasy.

This module is highly reliable amplifier module especially designed for FTTx, CATV, FDC and HFC analog applications.

Compared with conventional amplifiers, it is more compact, powerful and have higher reliability and stability.

The high power amplifier module employs patented technology for pump dump (Patent No.

ZL200820150412.3), and the patented technology for the laser driver circuit (Patent No.

ZL200820150413.8), to get better and more stable performance.

It employs 5V DC power supply for operation.

Features

Single 5V DC operation

Output Power: 30dBm

Input Power: -3~10dBm

Extremely low CSO: <-70dBc

Compact size: 150×125×24 (mm)

Wide operating temperature range

APC, AGC, ATC and ACC control modes

Low noise figure: less than 4.5dB at 0dBm input

High stability and reliability: MTBF>150000 hours

Perfect status monitoring interface: RS-232 or RS-485

Er-Yb co-doped double cladding amplification technology: Pump dump patent

Applications

FTTH system

Power actuator

Data transmission

Optical distribute system

Research and Design area

Detection for gas absorption

Free space optical communication

Power booster for tunable sources

Analog CATV Transmission System

Test/Measurement for optical device/systems Mechanical Dimension

150×125×19mm


Company Contact:


  • Phone: +86 13632576201

  • Address: 118 East Melinda Lane, Phoenix, Arizona , USA

  • Email: Email


Published date: August 23, 2018

  • Business Description: Optical Network, Transceiver, Optical Fiber Cables, Fiber optical Testers, Optical Amplifier & EDFA , OTDR ect.
