Duplex Thermal Awg Dwdm Mux And Demux 48 Channels 1ru Rack Mount - USA

price: 1793.00 Dollar US$

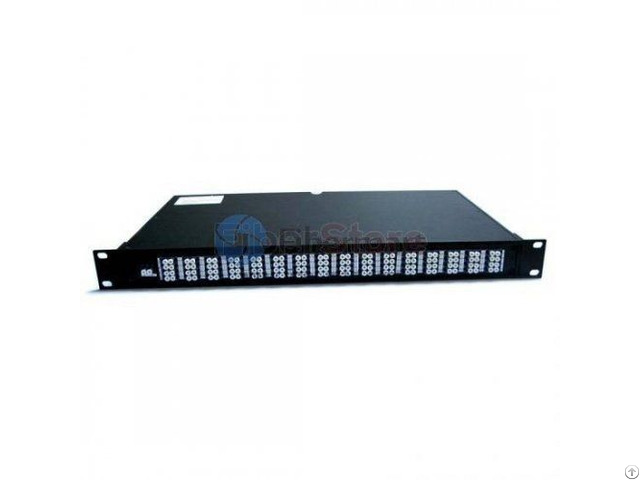

Duplex Thermal Awg Dwdm Mux And Demux 48 Channels 1ru Rack Mount

Products Photos Catalog Duplex Thermal Awg Photos Catalog

DWDM Mux/Demux modules are part of a series of high performance products based on silica-on-silicon planar technology.

The AWG chips Fiber-MART.

Com used for DWDM Mux/Demux are targeted for Long-Haul, Metro and access applications, where outstanding optical performance and low cost are paramount.

Athermal Arrayed Waveguide Grating (AAWG) DWDM Modules features of athermal packaging design require no electrical power, software or temperature control.

Thermal Arrayed Waveguide Grating (TAWG) DWDM Modules are designed for use within the C-band release of DWDM system.

To decrease the power dissipation of the devices in different environmental conditions, the AWG package is special designed with selection of reliable thermal plastic with low thermal conduction, and the AWG operating temperature is controlled by using foil resist heater or Peltier TEC with thermistor temperature sensor.

The channel spacing for DWDM is 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz grid).

This small channel spacing allows to transmit simultaneously much more information.

Item Details

48 channels DWDM mux and demux in one 1U/2U Rack

The channel spacing for DWDM is 0.8 nm (100 GHz grid).

1.6nm (200GHz)also available on request.

Com port is duplex

1U/2U 19inch Rack Mount Housing (LC: 1RU height.

SC, ST&FC: 2RU height)

Protocol transparent (10 Mbps to 100 Gbps)

Distance: Up to 80 km depending on power budget of user equipment

Low insertion loss

Excellent channel isolation

Epoxy-free optical path

Compliant to ITU-T G.

657A1 standard.

ISO 9001 manufacturing facility
