5g Rg502q Ea - China

5G, LTE cat 16, USB 3.1

GNSS (optional) VoLTE(optional) 5G sub-6GHz module 41.0mm × 44.0mm × 2.75mm LGA form factor Max.

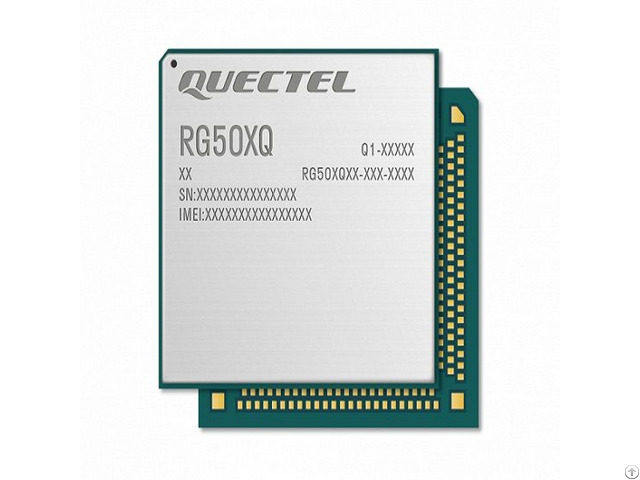

downlink 2.5Gbps / 900Mbps uplink Extended temperature range of -40°C to +85°C Overview The RG502Q-EA is a 5G sub-6GHz LGA module measuring 41.0mm × 44.0mm × 2.75mm which meets the 3GPP Release 15 specification and is optimized for IoT applications in Australia, China, Europe, New Zealand and South Korea.

It supports both standalone (SA) and non-standalone (NSA) modes, as well as Option 3x, 3a and Option 2 network architecture, is backward-compatible with 4G and 3G networks including LTE Cat 20, and delivers maximum downlink rates of 2.5Gbps and maximum uplink rates of 900Mbps The RG502Q-EA supports Qualcomm® IZat™ location technology Gen9C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the integrated GNSS receiver greatly simplifies product design and makes positioning capabilities quicker and more accurate.

A rich set of internet protocols, industry-standard interfaces and abundant functionalities (e.g. USB drivers for Windows 7/8/8.1/10, Linux and Android) allow the RG502Q-EA to serve a wide range of IoT applications including business routers, home gateways, set top boxes, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs and digital signage.

Key Featurers Supports both NSA and SA modes Supports Option 3x, 3a and Option 2 network architecture Supports Qualcomm® IZat™ location technology Gen9C Lite Supports MIMO USB 3.1 / PCIe 3.0 high speed interface Quectel Enhanced AT Commands Multi-constellation GNSS receiver available Feature refinements: DFOTA and VoLTE (optional
