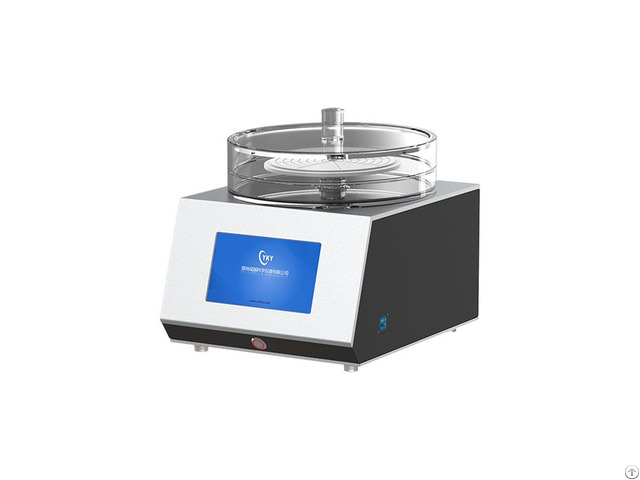

Acrylic Chamber 10000rpm Spin Coater For Eight Inch Wafer - China

Acrylic eight inches spin coater CY-SPC8-YKL This type of spin coater is designed small, and the whole body adopts aluminum alloy structure, The cavity is made of transparent acrylic, the appearance is beautiful and firm.

spin coater adopts advanced precision motor, the maximum speed can reach 10, 000rpm, which effectively guarantees the uniformity of film formation.

In addition, the instrument adopts touch screen control and can preset the coating curve, which greatly simplifies the use process and reduces the learning cost.

It is very suitable for laboratory purchase.

Acrylic eight inches spin coater application:

The spin coater can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films.

It is mainly used in photoresist spin coating, biological medium preparation, sol-gel method for polymer film production, etc.

Acrylic eight inches spin coater technical parameters:

Spin coater Supply voltage AC220V, 50Hz Spin speed 0~10000rpm Acceleration 100~5000rpm/s Speed resolution 1rpm Single step time 3000s Substrate size Diameter ≤ 8 inches (200mm) Chamber material Acrylic Operation method 7 inches HD LCD touch screen Dispensing method Manual dispensing, optional precision syringe pump Coating curve 5 segments per curve, a total of 5 curves can be stored Pumping port Φ8mm quick screw interface Overall size 290mm×365mm×260mm Total Weight 12kg

Exhaust system Vacuum pump Dry mechanical pump Pumping rate 1.1L/s Power supply AC220V 50/60Hz
