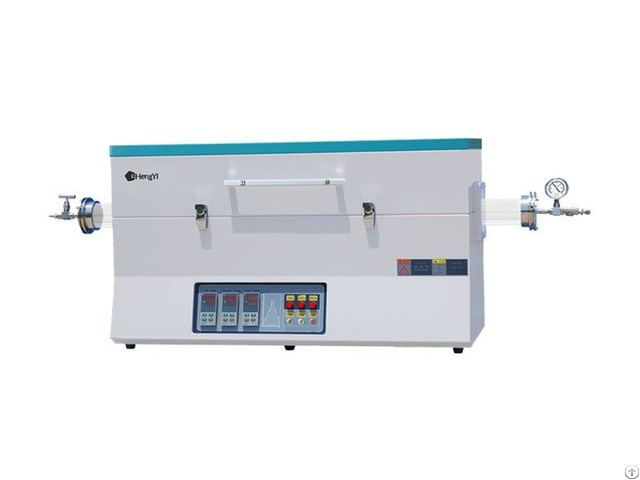

Chy T12100c Laboratory Three Zone 1200 Degree Tube Furnace - China

price: contact company for price

CHY-T12100C Laboratory Three Zone 1200 degree Tube Furnace lab Tube Furnace CHENGYI Three Zone Tube Furnace Manufacturer 1 - O.

D100*1400 high purity quartz tube

2 - High quality ceramic fiber chamber

3 - PID Programmable controller

4 - Heavy duty double layer structure CHENGYI Three Zone Tube Furnace APPLICATION

1 - Laboratory heat thermal processing

2 - High Vacuum Sintering Heating Annealing Brazing

3 - Laboratory Thin Film Preparation, Nano tube growthing

4 - Laboratory CVD system, graphene growthing, preparation.

Tube Furnace PARAMETERS

Product Name 1200 Degree Three Zone Tube Furnace

Model T12100C

Furnace Door Open Type Furnace

Display Model Highlight LED display

Maximum Temperature 1150℃

Working Temperature ≤1100℃

Heating rate ≤20℃/min Suggest: 10℃/min

Heating zones Single heating zone

Quartz Tube Diameter O.

D100*1400mm

Inner Diameter I.

D 94*1400mm

Heating Zone Length 220+440+220mm

Constant Heating Zone 100+300+100mm

Control mode Intelligent PID auto control

Temperature Accuracy ±1℃

Temperature curve 30 segments programmable

Over heat alarm Have

Overcurrent protection Have

Thermocouple Failure Protection Have

Temperature Sensor K-type thermocouple

Heating Element Fe-Cr-Al Alloy doped by Mo

Quartz Tube Material High Purity Quartz

After-sales service 12 month warranty, durable maintaince and repair support

Power Supply 220V 50HZ

Rated power 8.0kw

Overall dimensions 1060×470×610 (mm )

Packing 3-ply wooden case

Accessories Protective Glove, Crucible Tong, Crucible, Quartz Tube, Vacuum Flange, User Manual.

This three zone tube furnace can be used for laboratory heat thermal processing and high vacuum sintering heating annealing brazing.


Company Contact:


  • Phone: 860371-55027790

  • Address: 136 yard, 10th Avenue,jingkai Area, zhengzhou city, Henan , China

  • Email: Email


Published date: June 2, 2020

  • Business Description: Henan Chengyi Equipment Science and Technology Co.,Ltd was founded in 2013 - Our company is a manufacturer and supplier of lab equipment.

    Our Equipment range include: Tube Furnace, Muffle Furnace, CVD System,PECVD equipment,Plasma Cleaner,Hydraulic press,Lab grinding polishing equipment, lab ball mill etc.

    Our product are widely sold to America, UAE, European, South Africa etc.

    With Own R&D team and factory,we not only can supply standard lab equipment, also,we can do customized as request.

    We sincerely welcome worldwide friend come to visit us.
