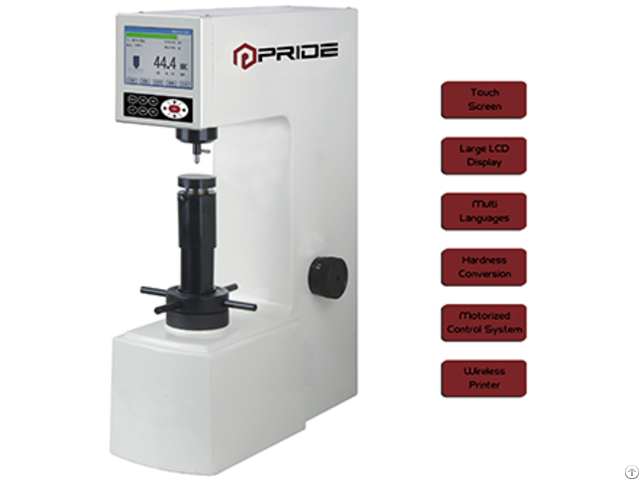

Color Touch Digital Rockwell Hardness Tester Rh 300t - China
price: contact company for price
Features:
● Half automatic hardness tester except loading initial force and change force knob.
Operation is very convenient
and fast.
● Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.
● Motorized control loading, dwell and unloading, eliminates error by manual operation.
● Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely improve accuracy.
● Auto hardness conversion to others scales, no need to check table and improve working efficiency.
● Support Multiple languages, English, Turkish, German, etc.
Convenient for local customers operation.
● Save 2000 single testing results and 1000 group results for reviewing and analysis
● Optional blue tooth mini printer is available.
Application:
●Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
●Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case
hardened steel, and other materials harder than B100.
●Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Specifications:
Rockwell Scales HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,
HRL, HRM, HRP, HRR, HRS, HRV
Preliminary Test Force 10Kgf(98.07N) Permitted Error:±2.0%
Test Force 60Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N)
Permitted Error:±1.0%
Dwell Time Adjustable 1-60s
Hardness Indication 5.2” Touch Screen, Resolution: 640x480
Resolution 0.1HR
Loading Control Auto Loading/Dwell/Unloading
Hardness Conversion HRC, HV, HBS, HBW, HK, HRA, HRD, HR15N, HR30N,
HR45N, HS, HRF, HR15T, HR30T, HR45T, HRB
Conversion Standards ASTM, DIN
Language Option Chinese, English, German, Portuguese, Turkish, Czech, Korean
Correction Range -3.0HR to +3.0HR, Step 0.1HR
Data Memory 2000 Single Measuring Result, Curve Analysis, Results
Reviewing And Analysis
Data Output Optional Blue Tooth Mini Printer
Max.
Height Of Specimen 175mm
Instrument Throat 165mm
Power supply AC220V/50Hz;AC110V/60Hz
Dimension(LxWxH) 520 x 215 x 700mm
Packing Dimension 630 x 440 x 960mm
Gross/Net Weight 120Kg/90Kg
Execution Standard GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18
Standard accessory
Name Qty Name Qty
Instrument Main Body 1pc Ø1.588mm Ball Indenter 1pc
Hardness Block (57-70) HRC 1pc Ø1.588mm Steel Ball 1pc
Hardness Block (20-33) HRC 1pc Cone Diamond Indenter 1pc
Hardness Block (85-100) HRB 1pc Weight A 1pc
Ø 150mm Flat Anvil 1pc Weight B 1pc
Ø 60mm Flat Anvil 1pc Weight C 1pc
Ø 40mm V-shape Anvil 1pc Power Cable 1pc
Accessories Box 1pc Instrument Manual 1pc
Company Contact:
- Posted By: shenzhen pride instrument inc.
- Phone: +86 13267192176
- Address: baoan xixiang , shenzhen , China
- Email:
- Website: http://www.prideinstrument.com
Published date: January 8, 2017 - Modified date: January 8, 2017
- Business Description: SHENZHEN PRIDE INSTRUMENT INC, Founded in 2001, our company specializes in development, manufacturing, marketing and sales of measurement instruments and equipments.
We have been operating on the four management concepts: Purpose, Responsibility, Innovation and Devotion.
