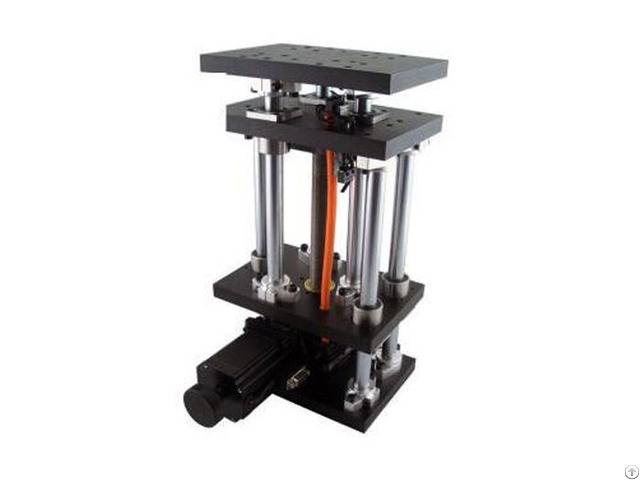

Electric Lifting Platform, Motorized Lab Jack, Elevator, Optical Sliding Lift PT-GD403

Motorized Lab Jack

Motorized Stage SPECIFICATION:

1 Item Number: PT-GD403

2 Travel Range: 100mm

3 Dimension of Platform: 180mm x 120mm

4 Drive Mechanism: Gear Motor with Grinding Screw

5 Travel Guide: Slide Rail

6 Stepper Motor (1.8°): SST57D2121 - Stepping Motor with 2-Phases & 1.8° of Step Angle

7 Material – Finish: Aluminum Alloy - Black-Anodized

8 Load Capacity: 50kgs

9 Weight: 10.5kgs

Accuracy Specifications

1 Minimum Adjust Distance: 0.75μm

2 Max Velocity: 8mm/sec

3 Repeatability: 5μm

4 Absolute Accuracy: 15μm

5 Backlash: 4μm

6 Lost Motion: 3μ

ADVANTAGE:

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.

Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.

PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages, High quality China Motorized Linear Stage.

They can be any combination, building block structure, can satisfy any scene usage requirement.

The products can be produced according to your needs if it don't meet your need.

Company Contact:

• Posted By: Beijing PDV Instrument Co., Ltd.

• Phone: 86-10-82613119

• Address: Room 1601, #2 Building, No.108, Zhichun Road, Haidian District Beijing, China, Beijing , Beijing , China

• Email:

• Website: https://www.pdvcn.com/

• Business Description: Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises.

  Since 2005, we have been serving the scientific research institutes and universities.

  We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.

  ) according to the needs of customers.

  Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, weve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.
