Environmental Climatic Thermal Shock Abuse Test Chamber Room Cabinet - China

Application: Bell’s Environmental Climatic Thermal Shock Test Chamber Price is developed to meet the greater demands for high accelerated stress tests (HAST) of electrical and electronic components.

The specimen transfer directly between hot and cold zone to achieve rapid product temperature change for thermal shock, also known as Environment Stress Screen test.

Thermal Shock Test Chamber is widely used as the lab test and product manufacturer to test their product qualification and reliability.

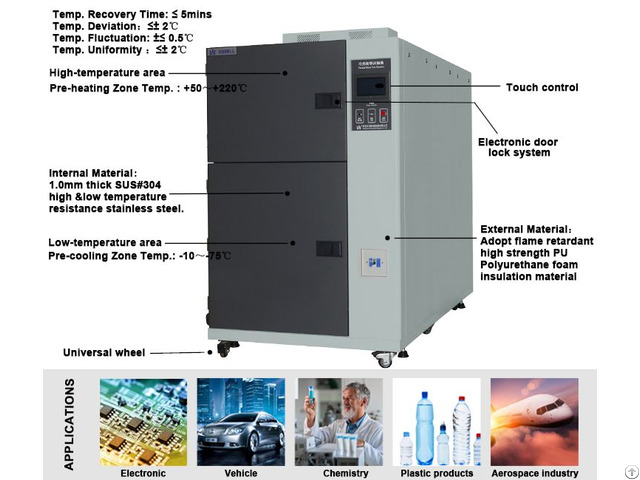

Features: 1 - Air-to-air thermal shock test.

2 - Direct transfer between hot and cold zone vertically with Stainless Steel carrier basket.

3 - Energy Efficient Design with Japanese or German technology, reduce electricity consumption by 20%.

4 - Compact footprint, Space saving 5 - Programmable Standard Compliance: 1 - IEC68-2-1 Environmental testing - Part 2: Test methods - Tests A: Cold 2 - IEC68-2-2 Environmental testing for electric and electronic products Test methods - Tests B: Dry Heat 3 - MIL-STD-810D Environmental test methods and engineering guidelines Product specification: Model BTS2-50 BTS2-80 BTS2-150 BTS2-250 BTS2-330 Test Space W x H x D (mm) 350x400x360 400x500x400 500x600x500 600x700x600 700x800x600 External Dimension W x H x D (mm) 1280x1920x1160 1320x2000x1520 1500x2100x1700 1600x2200x1900 1700x2300x1900 Performance parameters: Pre-cooling Zone Temp.

-10~-75℃ Pre-heating Zone Temp.

+50~+220℃ Pre-cooling Zone Cooling Rate -10~-40℃<30mins -10~-60℃<50mins -10~-75℃<65mins Pre-heating Zone Heating Rate +50~150℃<30mins +50~180℃<50mins +50~220℃<60mins Testing Zone Temp.

B Type : -40~150℃ C Type: -55~150℃ D Type: -65~150℃ Temp.

Recovery Time ≤ 5 mins Temp.

Fluctuation ≤±0.5℃ Temp.

Deviation ≤±2℃ Temp.

Uniformity ≤±2℃ Internal Material 1.0mm thick SUS#304 high &low temperature resistance stainless steel.

External Material Adopt flame retardant high strength PU Polyurethane foam insulation material.

Control Method Touch screen programmable PLC, with USB interface, with RJ485 interface can be connected to computer controlling, special network control software, convenient remote monitoring, data acquisition.

Compressor Tecumseh (France)-fully air-cooled double-fall cooling compressor.

Or Bock / Bitzer (Germany) semi-enclosed air-cooled refrigeration.
