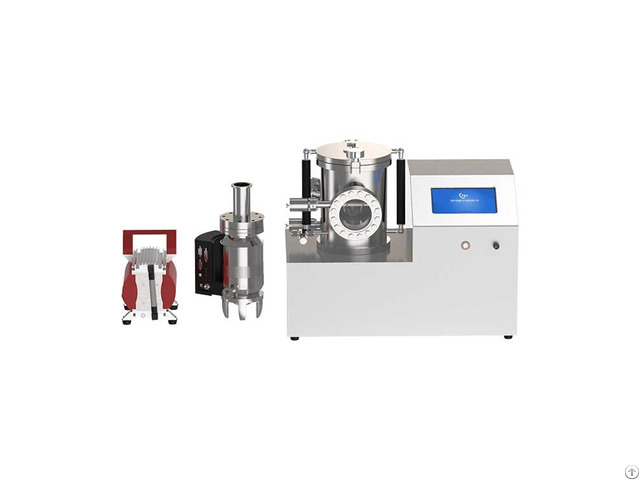

High Vacuum Plasma Sputter Thermal Evaporation Two In One Coating Machine - China

CY-EVS180S-HV The plasma sputtering and evaporation two-in-one coating machine is equipped with DC sputtering target and thermal evaporation assembly, which can not only be used for metal film plating by plasma sputtering, but also obtain carbon or other metal elemental films by evaporation.

This coating machine 304 stainless steel as vacuum chamber, and the coating process is completely visible.

The instrument is equipped with two stage rotary vane vacuum pump, which can quickly reach the vacuum degree of 1.0E-3pa, Ultimate vacuum 1.0E-5Pa, and can meet the vacuum environment required by most evaporation coating experiments and diode sputtering experiments.

This instrument has small size which can save space and can be used on the test bench.

One machine has multiple purposes, which is cost-effective and very suitable for major universities and research institutions to choose.

plasma sputter & Thermal Evaporation coating machine applications:

Scanning electron microscope sample surface gold spraying, gold steaming carbon spraying and other operations, as well as the production of non-conductor material test electrode.

plasma sputter & Thermal Evaporation coating machine technical parameters:

Supply voltage AC220V, 60Hz

Maximum power 1200W

Sample Stage Diameter φ65mm;

Adjustable distance from evaporation source, adjustable range 60mm-100mm

Vacuum chamber Material: 304 stainless steel O.

Dφ168mm x I.

Dφ160mm x 210mm

Maximum temperature 1700℃

Thermocouple B type thermocouple

Vacuum gauge Electronic vacuum gauge

Vacuum system Foreline pump: Pufa MVP030 oil-free pump, pumping speed 30L / min

Secondary pump: Leybold TURBOVAC 90iX pumping speed 90L / s

Vacuum interface KF40

Intake port 1/4 card sleeve connector

Overall size 500x350x400mm
