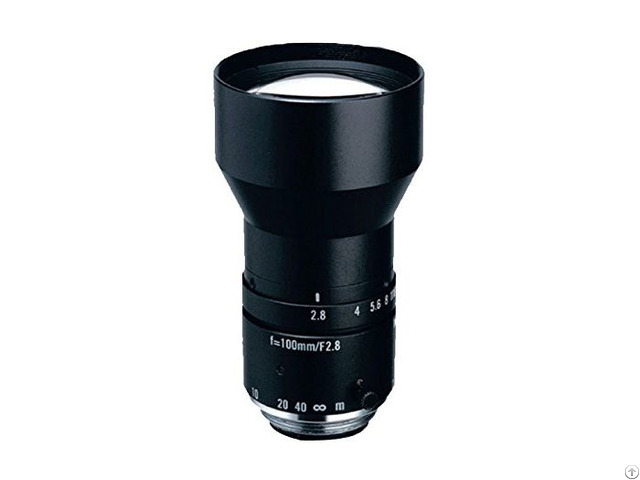

Kowa Lens Microscope Objective Lm100jc - China

kowa lens microscope objective lens LM100JC Kowa Lens

Model LM100JC

Focal length(mm) 100

Image size(mm) 2/3"(Φ11)

Iris range(F-stop) F2.8〜F32

Focusing range(m) 2.0〜∞

Control Iris Manual Focus Manual

Shooting range at M.O.D.

36.8(H)×27.6(V)

Angle of view 2/3 inch 5.0×3.8

(degree) 1/2 inch 3.7×2.8 1/3 inch 2.8×2.1

Resolution(Center, Corner) 100lp/mm, 60lp/mm

Distortion(TV) −0.05%

Back focus in air(mm) 19.0

Mount C-mount

Filter thread(mm) M40.5×P0.5

Size(mm) Φ42×70

Weight(g) 150

Temperature range −10℃〜＋45℃

Specifications are subject to change without notice.

ADVANTAGE:

PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages, High quality China Motorized Linear Stage.

They can be any combination, building block structure, can satisfy any scene usage requirement.

It is used for the fixation and adjustment of objective lens and lens.

Meet the requirements of your experimental scenario.
