Lab Equipment Manufacturer - China

price: contact company for price

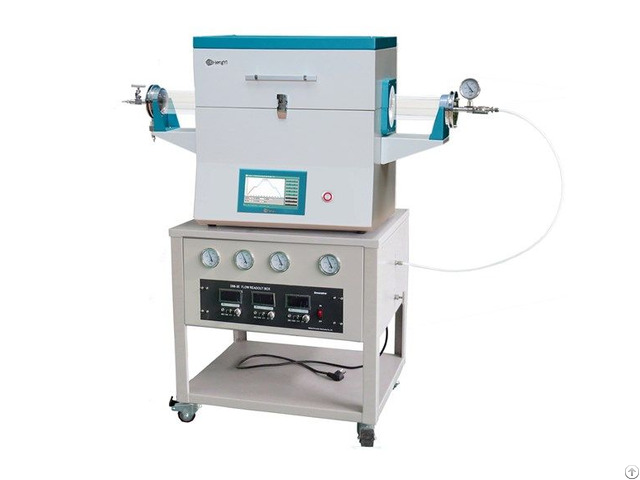

CHY-T1250A-3Z4C Laboratory 1200 degree CVD Furnace with O.

D50*1000mm Quartz Tube lab equipment manufacturer 1 - O.

D50*1000mm high purity quartz tube

2 - High quality ceramic fiber chamber

3 - PID Programmable controller

4 - Three gas way mass flow controller with precision gas flow controller

5 - Two stage Vacuum Pump

5 - Made by Henan Chengyi CVD System APPLICATION

1 - Laboratory heat thermal processing

2 - High Vacuum Sintering Heating Annealing Brazing

3 - Laboratory Thin Film Preparation, Nano tube growthing

4 - Laboratory CVD system, graphene growthing, preparation.

PRODUCT PARAMETERS

Product Name 1200 degree CVD Furnace

Modle No.

CHY-T1250A-3Z4C

Heating zones Single heating zone

Heating zone length 400mm

Constant temperature zone length 200mm

Tube Material high purity quartz tube

Tube diameter O.

D50*I.

D44*100mm Quartz Tube

Tube Length 1000mm, 750mm, 1000mm, 1200mm as enquiry

Thermcouple K type

Maximum heating temper 1150 dgree

Heating rate 20c/min, adjustable

Heating element Fe-Co-Al alloy

Sealing Method stainless steel vacuum flange

Vacuum Air-tightness 9.8×10-4Pa

Temperature Accuracy ±1℃

Control Mode Intelligent PID programmable Control

Mass Flow Controller 3 gas way mass flow controller

Flowmeter Core 304 stainless steel

Measure Accuracy +/- 1.0% F.

S

Pressure Range -0.1~0.15MPa

A way gas range 0~100SCCM

B way gas range 0~200SCCM

C way gas range 0~500sccm

Vacuum Pump 4C

Power Supply AC220V 50Hz


Company Contact:


  • Phone: 860371-55027790

  • Address: 136 yard, 10th Avenue,jingkai Area, zhengzhou city, Henan , China

  • Email: Email


Published date: December 16, 2020

  • Business Description: Henan Chengyi Equipment Science and Technology Co.,Ltd was founded in 2013 - Our company is a manufacturer and supplier of lab equipment.

    Our Equipment range include: Tube Furnace, Muffle Furnace, CVD System,PECVD equipment,Plasma Cleaner,Hydraulic press,Lab grinding polishing equipment, lab ball mill etc.

    Our product are widely sold to America, UAE, European, South Africa etc.

    With Own R&D team and factory,we not only can supply standard lab equipment, also,we can do customized as request.

    We sincerely welcome worldwide friend come to visit us.
