Lab Spray Drying Granulator - China

Product Profile:

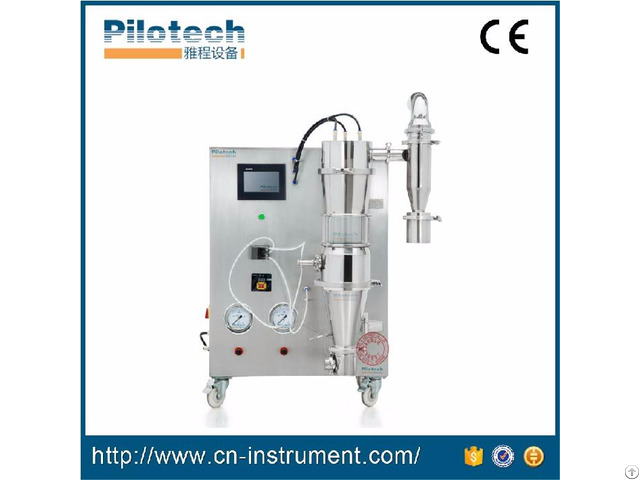

Developed by Shanghai Pilotech Instrument & Equipment Co., Ltd., YC-1000 laboratory spray granulator (fluidized bed granulation) combines spray dehydration and granulation focusing on large particles powder granulation in laboratory.

Features:

1 - Three processes of mixing, dehydration and granulation in fluidized bed spray granulation are completed in one equipment.

2 - The experiment requires a minimum amount of samples of 50 grams.

3 - Small area coverage of mere 0.5 square meters that can be placed on the laboratory table.

4 - Simple process, concise equipment, low power consumption and environmental performance.

5 - Suitable for heat-sensitive materials and samples of easy dissolving particulates.

6 - PLC operation control.

Color LCD touch screen displays the whole experimental process.

7 - Shutdown protection: press the stop button and the machine (except the fan) stops working immediately so that heating parts will not be burnt due to misuse (forced shutdown of the fan).

8 - Stainless steel machine body and two-fluid spray atomization structure.

9 - Real-time control on PID temperature.

Fluidized bed control parameters

Fluidized inlet air speed: 150 cube/h at maximum

Fluidized inlet air temperature: 40 ℃-150℃

Peristaltic pump flow: adjustable, 100-500ml/h at maximum

Air pressure for spray atomization: 0.15-4BAR

Weight of spray sample: 50-400g/time

Technical index

Expansion chamber volume: 10L

Fan power: 1.5KW

Heating power: 3KW

Expansion chamber materials: high borosilicate glass and stainless steel

Maximum inlet air speed: 150m3/h

Air compression pressure: 0.15Mpa~0.6Mpa; Air compression consumption: ≤4m3/h

Material treatment capacity: 50-400g/time

Color LCD touch screen parameters: air intake temperature/material temperature/fan frequency

Inlet air temperature: 40℃-150℃

Voltage: 220V/50Hz, 5KW

Size: 1100×1000×1330 mm

Weight: 80 Kg

Application scope:

Pharmaceutical product/food and feed/ceramic product/plastic and rubber/polymer and resin/ biogenetic product/chemicals and fertilizer/ perfume/ coloring matter and dye/vegetable and fruit extract/ aromatic substance/grain crop, etc.
