Laboratory Electron Beam Evaporation Coating System - China
price: contact company for price

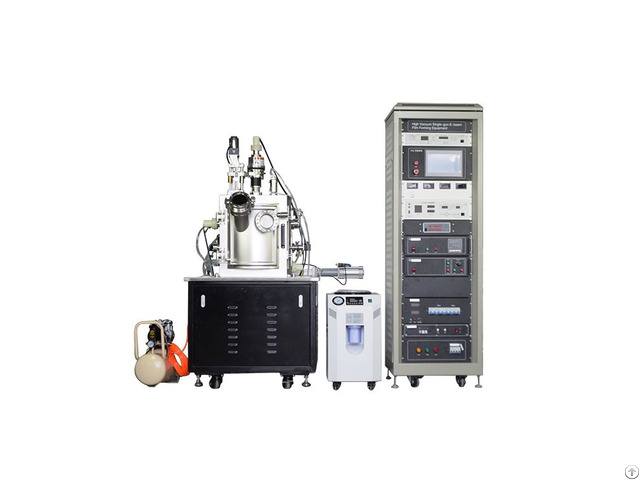

Electron Beam Evaporation Coating System
The equipment uses electron beam evaporation as coating equipment.
It is mainly used to prepare various conductive thin films, semiconductor thin films, ferroelectric thin films, optical thin films, micro-fabrication of micro and nano devices, sample pretreatment of electron microscopy, etc.
It is especially suitable for evaporating various refractory metal materials.
It can be used not only on hard substrates such as glass and silicon wafers, but also on flexible substrates such as PDMS, PTFE and PI.
Technical parameters of equipment
Conditions of use ambient temperature 5 ~40 C
Power supply three-phase 380 V
Power <20 KW
Water pressure <2.5bar
Vacuum chamber size evaporation chamber size: Phi 500 *H500
Electronic gun a new type of electronic gun, 6-hole crucible
Sample turntable Sample size: <150mm, sample can be rotated, and the distance between sample and electron gun can be adjusted up and down (Sample holder shape is designed according to user's requirements), heating temperature <500 C.
System Vacuum Limit vacuum: baked for 12 to 24 hours, continuously pumped less than 5x10-5Pa
Pumping Rate: Vacuum < 5x10-4Pa within 40 minutes from atmospheric start
System Leakage Rate: Measuring Vacuum Vacuum Degree of Vacuum Chamber < 10Pa after 12 hours of shutdown Vacuum pumping system FB1200 molecular pump + mechanical pump (TRP-36) system with bypass pumping Coating monitoring SQM160 film thickness meter is used for monitoring.
Coating thickness The unevenness of coating thickness is less than 6%
Company Contact:
- Posted By: Zhengzhou CY Scientific Instrument Co., Ltd.
- Phone: +86 371 5519 9322
- Address: No. 820, 8th Floor, 1st Unit, 9th Block, Cuizhu Street, High-Tech Zone, Zhengzhou, Henan, China, zhengzhou , henan , China
- Email:
- Website: https://www.cysi.wang
Published date: July 31, 2020 - Modified date: July 31, 2020
- Business Description: Founded in 2013 by a group of professional engineers.
CY is a high and new technology enterprise registered in Zhengzhou,Henan province.
CY Scientific Instrument mainly provide regular furnace for lab.
Also do customized furnace and some other related accessories and equpments in high quality and low cost precision machines for material research and R&D lab.
