Laboratory Equipment Rechargeable Battery Thermal External Short Circuit Tester - China

Application: Laboratory Equipment Battery Thermal Short Circuit Tester for Lithium Ion Battery is designed to complies with standards at the internal resistance far less than 5mΩ to achieve large short-circuit current.

In additional, a load-bearing capacity must be designed in electrical system for short-circuit system.

Thus, Bell R&D team selects industrial DC magnetic contact with full copper terminal and internal copper current conduction, and internal active bead axial fan is mounted to cool to ensure the test system more safer and reduce the test machine power consumption and enable the test data in accuracy.

Related Standard Test Requirements: 1 - IEC62133-2017 2 - UL1642 3 - UN38.3 4 - GB31241-2014 Features: 1 - Long distance connect and disconnect DC voltage to 220V.

2 - Rated working current 1000A, installed with series connection magnetic blow mediastinal plate clay arc shield arc extinguishing system.

3 - Plane layout structure, electromagnetic system andf machin contactor arc extinguishing system fixed on under frame independently.

Adopt angular rotation clapper type electromagnetic system and double winding attracting coil, add arris pressing device on the rotating angular.

Main contactor made with red copper.

With low contact resistance, high reaction speed 4 - Reliable contactor acting, safety, long service life, and easy repare and maintenance.

If you have any ideas, please feel free to let us know.

We promise your enquiry will receive our prompt reply.

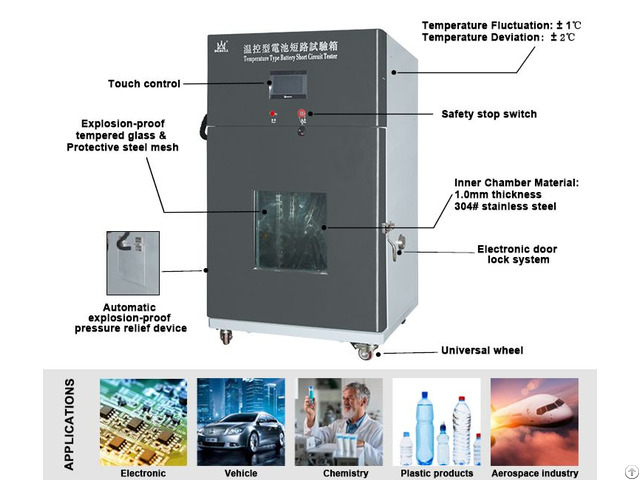

Performance parameters: Model BE-8102 Structure All-in-one structure, the door uses explosion-proof lock and explosion-proof chain Max.

short-circuit current 1000A Internal Resistance 80±20 mΩ (Load-current 400A) Remote Control Available Distance 7 meters without solid barrier Controlling Mode PLC touch type (7 inch) + remote control Mechanical Life 300 thousand times Electric Life Resistive load 50, 000 times Temperature Range Normal temperature to 80°C or 0-80°C (Optional) Temperature Fluctuation ±1℃ Temperature Deviation ±2℃ Inner Chamber Dimension W600 X D500 X H600mm Inner Chamber Material 1.0mm thickness 304# stainless steel External Chamber Dimension W940XD780XH1620 mm External Chamber Material Cold-rolled sheet paint with1.5mm thickness, total thickness together with inner chamber is 100mm) Observation Window 390 X 360mm (20mm thick explosion-proof tempered glass) and protective steel mesh Power Supply AC220V / 3.0KW Data Output Current and voltage temperature can be recorded with the interface display.

The test data can be directly output by USB flash disk Security System Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch Options Temperature acquisition, voltage acquisition system, video monitoring system
