Laboratory Multi Arc Ion Plating Machine - China

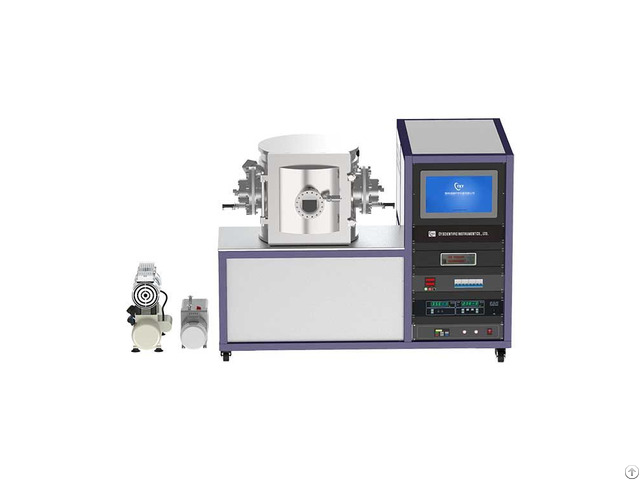

Multi-Arc Ion Plating CY-MIOP400S-2TA

Multi arc ion plating uses gas discharge or partial dissociation of evaporated materials to deposit evaporated or reactive materials on the substrate at the same time of bombardment by gas ions or particles of evaporated materials.

The equipment is equipped with two multi arc targets, which are arranged on both sides of the cavity.

With the planetary sample table, the coating efficiency can be effectively improved and the effect can be improved Features

1 - The coating instrument also adopts the integrated design, the cavity and the electric control part are left and right separated, realizing the separation of water and electricity, and effectively ensuring the safety of users.

2 - The combination of glow discharge, plasma technology and vacuum evaporation can not only improve the film quality, but also expand the application of the film.

3 - It has the advantages of fast evaporation rate, strong adhesion, good diffraction and wide film material.

It is very suitable for hard protective coating such as TiN.

4 - At the same time, the color of the film can be changed by controlling the atmosphere, and the film is firmly combined with the substrate, so it can also be used to make decorative films of various colors.

Technical parameter

multi-arc ion plating

sample stage Planetary sample table, OD 305mm, six stations around

The workpiece can be hung on the support bar of each station

Peripheral speed 1 ~ 20rpm adjustable

Multi-arc ion target φ84mm X 2 Vacuum chamber Size: φ300mm *400mm watch window: φ100mm anti-dazzling screen

Material: 304stainless steel

opening mode: front opening door

Film thickness control Crystal mode, optional multi-channel

Vacuum system Front pump: Bipolar rotary vane pump

Extraction interface: KF16

Secondary pump: turbo molecular pump

Extraction interface: CF160

Vacuum gauge: Resistance and ionization compound vacuum gauge

Exhaust rate: mechanical pump: 1.1L/s;molecular pump: 600L/s

ultimate vacuum: 1.0E-5Pa

Voltage: AC 220V 50/60Hz

Pumping rate: rotary vane pump：1.1L/S Control system automatic control

Operation interface: touch screen + operation panel Other Voltage: AC380V, 50Hz

Dimensions: 1000mm* 800mm * 1500mm

Total power: 5kW

Weight: 350kg
