Laboratory Ptfe Chamber Anti-corrosive 8, 000rpm Spin Coater - China
price: contact company for price

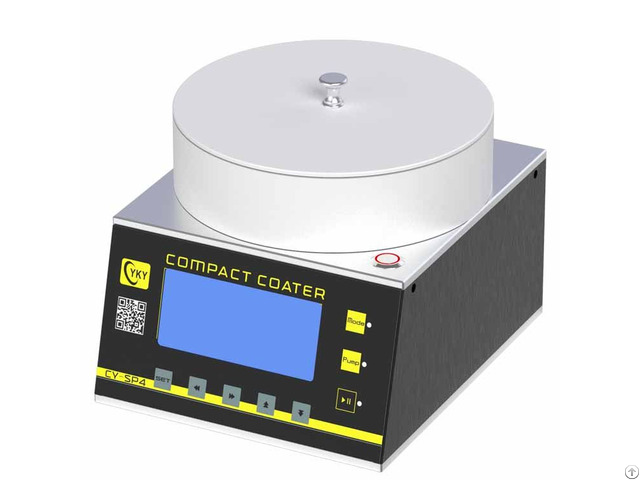

CY-SPC4-E PTFE chamber anti-corrosive small spin coater the whole body adopts aluminum alloy structure and advanced precision motor, the maximum speed can reach 8, 000rpm; the control relies on the button and the high-brightness LCD screen, in addition to direct spin coating, it can pre-store the spin coating curve for program-controlled spin coating.
The spin coater can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films.
It is mainly used in photoresist spin coating, biological medium preparation, sol-gel method for polymer film production, etc.
Technical parameters: Supply voltage AC220V, 50Hz
Spin speed 0~8000rpm
Acceleration 100~5000rpm/s
Speed resolution 1rpm
Single step time 3000s
Substrate size Diameter ≤ 4 inches (100mm)
Vacuum sucker Diameter 10mm/25mm/55mm
Vacuum pump Oil-free vacuum rotary vane pump
Chamber material Plexiglass
Operation method Button + LCD screen
Dispensing method Manual dispensing, optional precision syringe pump
Coating curve 5 segments per curve, a total of 5 curves can be stored
Pumping port Φ8mm quick screw joint
Overall size 210mm×250mm×180mm
Total Weight 8kg
Vacuum pump Dry mechanical pump
Pumping rate 1.1L/s
Power supply AC220V 50/60Hz
Company Contact:
- Posted By: Zhengzhou CY Scientific Instrument Co., Ltd.
- Phone: +86 371 5519 9322
- Address: No. 820, 8th Floor, 1st Unit, 9th Block, Cuizhu Street, High-Tech Zone, Zhengzhou, Henan, China, zhengzhou , henan , China
- Email:
- Website: https://www.cysi.wang
Published date: August 2, 2020 - Modified date: August 2, 2020
- Business Description: Founded in 2013 by a group of professional engineers.
CY is a high and new technology enterprise registered in Zhengzhou,Henan province.
CY Scientific Instrument mainly provide regular furnace for lab.
Also do customized furnace and some other related accessories and equpments in high quality and low cost precision machines for material research and R&D lab.
