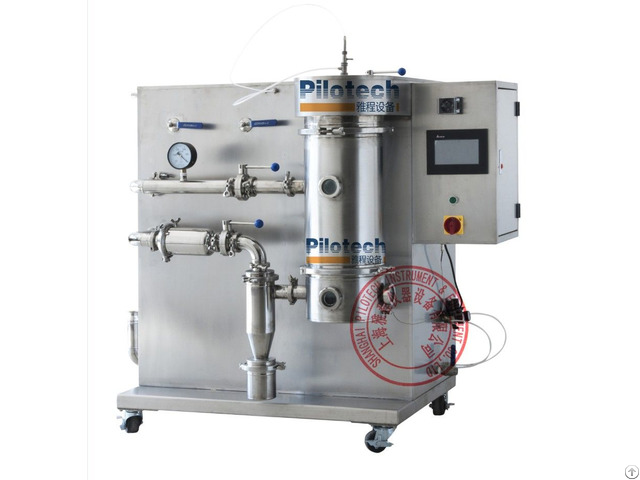

Laboratory Spray Freeze Drying Equipment - China

YC-3000 laboratory spray freeze drying equipment features 1, With combination of spray dryer and vacuum freeze dryer, YC-3000 laboratory Spray freeze dryer have the more rapid drying speed than traditional vacuum freeze dryer.

The dried powder basically retain their original biological and chemical properties for easy and long-term preservation and when dissolved in water again, materials return to the state of pre-freeze-drying.

2, YC-3000 laboratory spray freeze drying equipment adopts a cooling system of air-cooled condensing closed compressor with rapid cooling performance, low freezing temperature and strong moisture absorption ability.

Temperature and vacuum degree are displayed in a digital, accurate, and direct mode.

3, In dehydration, the present equipment heats and sublimates natural air to maintain the security of samples.

4, Vacuum pump built-in.

5, The convenient and reliable vacuum connection adopts international standard clamp.

6, Stable performance, easy operation and low noise.

7, Compared with traditional freeze dryer: rapid freeze-drying of wall sticking and organism containing liquid materials (juice, traditional Chinese medicine extract, etc).

The powder size is adjustable within a certain range.

YC-3000 laboratory spray freeze drying equipment (spray freeze dryer)technical parameters

1) Color LCD touch screen parameters can display drying chamber temperature/pump speed/fan frequency/de-blocker frequency/drying chamber pressure.

2) Capacity: 1000ml/batch 3) Spray freezing temperature: <-15℃ 4) Cold trap temperature: ≤-60℃ 5) Vacuum pump power: 2KW 6) Ultimate vacuum pressure: <20Pa (idle) 7) Spray pressure: 2-5BAR (adjustable) 8) Air compressor gas production rate: 4.2M3/h 9) Cold air volume: 5.5M3/min YC-3000 laboratory spray freeze drying equipment (laboratory spray freeze dryer) application scope: YC-3000 laboratory spray freeze drying equipment can be used for low-temperature dehydration of heat-sensitive, viscous, active and high sugar materials, such as Chinese herbal medicine and nature product extract, dairy product, biological agent, enzyme, fruit original juice, and polymer materials.
