Micro Hardness Hester 531mvt - China

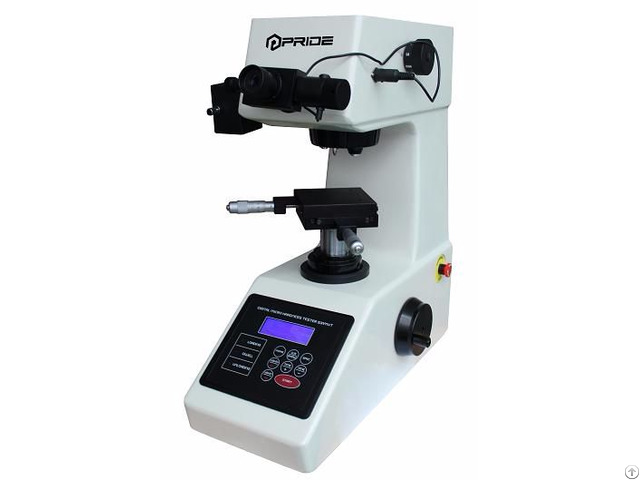

531MVT Micro Vickers Hardness Tester made with a unique and precise design in the field of mechanics, optics and light source is able to produce a clearer indentation and hence a more precise measurement.

By means of a 20 × lens and a 40 × lens the tester has a wider measurement field and a broader usage range.

Equipped with a digital microscope, it shows the measuring methods, the test force, the indentation length, the hardness value, the dwell time of the test force as well as the number of the measurements —— all shown on its LCD screen.

What is more, it is equipped with an interface linked to a digital camera and a CCD video—camera, and is, therefore, a representative of the products of the same kind in the country.

Features:

●Ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals;

●Glass, ceramics, agate, precious stones;

●Hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers

●With manual Turret

Technical specifications

Testing Forces (0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80) N

(10, 25, 50, 100, 200, 300, 500, 1000) gf

Turret Automatic ( loading / dwell / unloading )

Magnification of the Microscope 200×, 400 ×

Dwell Time of the Test Force (5-60)s

Min.

Graduation Value of the Testing Drum Wheel 0.0625um

Testing range 1HV—2967HV

Dimension of the XY anvil 100 × 100 mm

Travel of the XY anvil 25 × 25mm

Max.

height of the specimen 70 mm

Max.

depth of specimen 95mm

Light source Halogen light source

Accuracy Conforms to EN-ISO 6507 ASTM E384

Power Supply 110V/220V, 60/50Hz

Standard accesory

XY-stage test table, Thin specimen test table

Fork-shaped test table, Fine wire test table

Adjustable screw, 10×Digital Micro Lens

Micro Vickers hardness blocks (high medium), Air Level

Optional accesory Knoop indenter, CCD adapter, Camera and Monitor, Micro hardness testing software

Dimension 425 × 245 × 490 mm

Weight Gross: 41.5kg Net: 35kg
