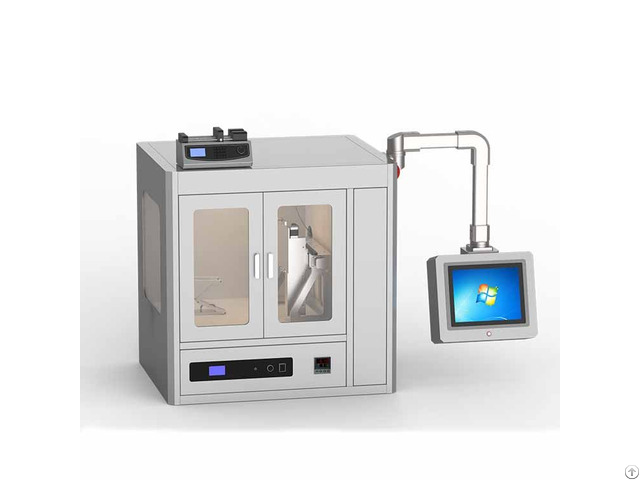

Nanofiber Electrospinning Machine With Xy Axis Movable Plate Collectors - China

The high-voltage electrospinning machine produced by our company is a device for preparing ultra-fine fibers based on electrospinning technology by using polymer solution or melt to spray in a strong electric field.

The machine is mainly composed of four parts: liquid supply device, spinning head, high voltage power supply and collecting device.

The liquid supply device adopts a professional scientific research syringe pump, which can provide continuous and stable flow of liquid, and the liquid supply speed can be adjusted to meet the needs of different types of spinning solutions.

The spinning head has multiple nozzles and the number of nozzles is optional.

The bracket can be adjusted to obtain the best spinning distance and non-woven fabric with different width.

The high-voltage power supply can provide long-term stable electric field and the electric field strength for electrospinning is 0-30kV.

Equipped with three sets of collecting devices, including a set of six sizes of mandrel collectors for electrospinning; a plate collector for nanofiber collection; and a set of XY-axis movable plate collectors for the preparation of film.

High-voltage electrospinning machine application:

It can be used in the spinning of a variety of natural or artificial polymeric materials.

The films and nanofiber prepared can be used for research and production in various fields such as filtration separation, biomedicine, new energy, and electronic information.

High-voltage electrospinning machine technical parameters:

Item Detail

Supply voltage AC220V, 50Hz

Total power 2.5KW

High voltage power supply Input voltage 0-30kV Max current 0.5mA

Heating source Heating method Infrared heating tube Max temperature Substrate temperatures up to 60℃ Max heating power 1000W

Syringe pump Syringe capacity 2.5ml~60ml Flow range 2.779μl/min~72.24ml/min

Collector Mandrel collector Six sets with various size: 200mm × φ100, 25, 12, 7, 6.0, 2.0mm;

Actuator: brushless motor; mandrel shaft speed: 300-4000 rpm; used for electrospinning Plate collector Dimensions: 320mm ×100mm × 2mm; Material: Stainless steel; for nanowire collection Y-axis movable plate collector Dimensions: 300mm × 200mm × 5mm; Material: Stainless steel; used to prepare film, computer program to control the way of moving
