Near-IR Long Working Distance Plan Achromat - LMPLN-IR/LCPLN-IR

OLYMPUS Objective Lenses Microscope Objective SPECIFICATION:

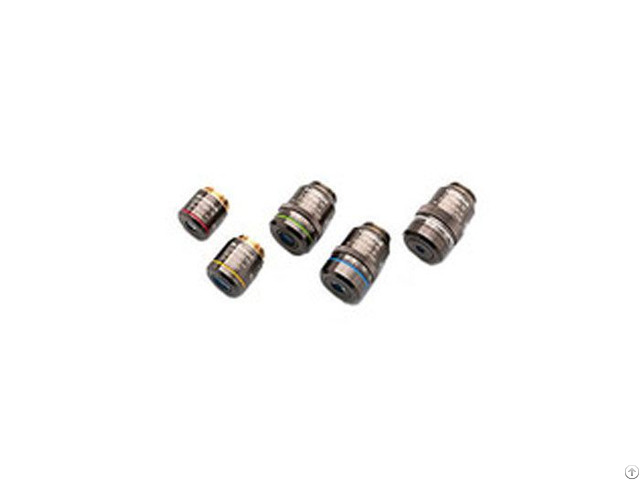

Our LMPLN-IR and LCPLN-IR long working distance Plan Achromat lenses, are specifically designed for optimal transmission in the near infrared (700-1300nm wavelengths).

Product description

Objective lenses exclusive for the near-infrared microscopy, for inspecting internal structures in silicon wafers

The LCPLN-IR lenses have correction collars that adjust for varying thicknesses of silicon or glass substrates

Specifications

Magnification [X] 5 10 20 50 100

Numerical aperture (NA) 0.1 0.3 0.45 0.65 0.85

Working distance (WD) [mm] 23 18 Glass: 8.93 - 8.18

Silicone: 8.93 - 8.18 Glass: 5.09 - 4.35

Silicone: 5.09 - 4.79 Glass: 1.48 - 1.18

Silicone: 1.48 - 1.33

Objective Field Number 22 22 22 22 22

Immersion medium Air/Dry Air/Dry Air/Dry Air/Dry Air/Dry

Spring loaded N/A N/A N/A N/A N/A

Correction collar N/A N/A Yes Yes Yes

Correction range of correction collar N/A N/A Glass: 0 - 1.2mm

Silicone: 0 - 1.2mm Glass: 0 - 1.2mm

Silicone: 0 - 1.2mm Glass: 0 - 0.7mm

Silicone: 0 - 1mm

Iris N/A N/A N/A N/A N/A

Correction level of chromatic aberration - - - - -

Parfocalizing distance [mm] 45 45 45 45 45

Back focal plane (BFP) position 2.4 -1.2 -3.0 -2.9 -3.1

Type of screw thread W20.32X0.706(RMS) W20.32X0.706(RMS) W20.32X0.706(RMS) W20.32X0.706(RMS) W20.32X0.706(RMS)
