Pid Temperature Controlled Ultrasonic Spray Pyrolysis Coating Machine - China

The spray pyrolysis film preparation method is to atomize the solution and spray it onto a heated substrate, and then obtain a desired material structure on the substrate.

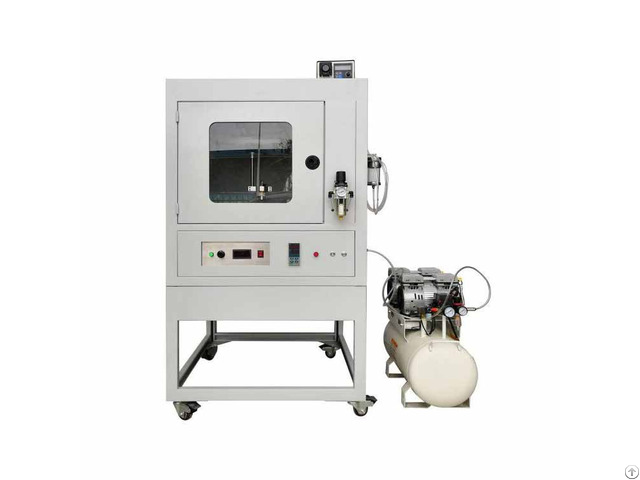

This equipment is an ultrasonic spray pyrolysis equipment independently developed by our company.

It is equipped with 40KHz 130W ultrasonic sprayer, PID temperature-controlled substrate heater plate, high precision peristaltic pump and precision programmable stepping motor moving mechanism.

The integrated design of the device can accurately control the parameters such as the amount of solution, the speed of the spray particles and the size of the spray particles, and the substrate temperature can also be controlled to meet your various experimental needs.

Ultrasonic spray pyrolysis coater application range:

This material preparation method is particularly suitable for the deposition of oxides and has a long history of application in the preparation of transparent electrodes.

This method is now widely used in the preparation of perovskite solar cells.

Ultrasonic spray pyrolysis coater technical parameters:

Item Detail

Supply voltage AC220V, 50Hz

Max power 3.5KW (including compressor + peristaltic pump 1.5KW)

Ultrasonic sprayer 40KHz 130W

Liquid viscosity 1-50mPa·s (cP)

Nozzle stroke X-Y axis up to 190mm

Moving speed 10-180mm/s (x-axis direction) 10-180mm/s (Y-axis direction)

Substrate heater plate 150mm×150mm

Max temperature 500℃

Temperature control method AI-PID temperature control

dispensing tank capacity 50mL / 250mL (two containers included)

Peristaltic pump dispensing rate 0.006-41mL/min

Control method Industrial computer + instrument panel

Overall size 850mm×850mm×1450mm
