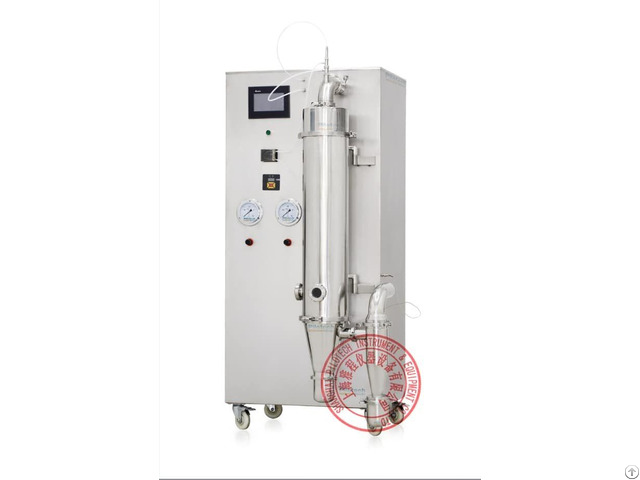

Pilot Spray Dryer With 1 100um Particles - China

ONE: fetures Flexible switch between small and high processing capacities Large particle processing ability Perfect combination of low temperature and ultra-high temperature Color Touch Screen, Fast setup and cleaning times Scale up to pilot or industrial scale possible.

Visible process due to glass assembly Adjustable particle size (1 – 100 microns) YC-018 lab spray dryer Two Fluid Nozzle with SUS316L stainless steel High recovery rate Temperature protection Over 1, 500 domestic customers of top universities, enterprises and research institutes use our mini spray dryer.

And exported to more than 40 countries & regions such as the United States, Italy, South Korea, Mexico, Singapore, Canada, Malaysia, Chile and Russia etc.

TWO: PRINCIPLE

1, A menu driven microprocessor controller allows the selection of inlet temperature, airflow, automatic de-blocker frequency and pump speed.

2, The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber.

At the same time an integral compressor pumps air into the outer tube of the jet which causes the liquid to emerge as a fine atomised spray into the drying chamber.

3, Heated air is blown through the main chamber evaporating the liquid content of the atomised spray.

The solid particles of the material, which are normally in a free flowing state, are then separated from the exhaust air flow by a cyclone and collected in the sample collection bottle.

The exhaust airflow is directed through a flexible 60 mm diameter hose direct to atmosphere or to an existing extraction system.

Wide range of applications

This technique has successfully processed materials in the following areas: Oxide • Blood • Polymers and Resins

Beverages • Flavours & Colourings

Milk & Egg Products • Plant & Vegetable Extracts

Pharmaceuticals • Heat Sensitive Materials

Plastics • Perfumes • Dyestuffs

Ceramics & Advanced Materials

Soaps & Detergents •Textiles

Foodstuffs • Adhesives

Bones, Teeth & Tooth Amalgam and many others
