Pt Xy50 Xy Motorized Microscope Stage - China

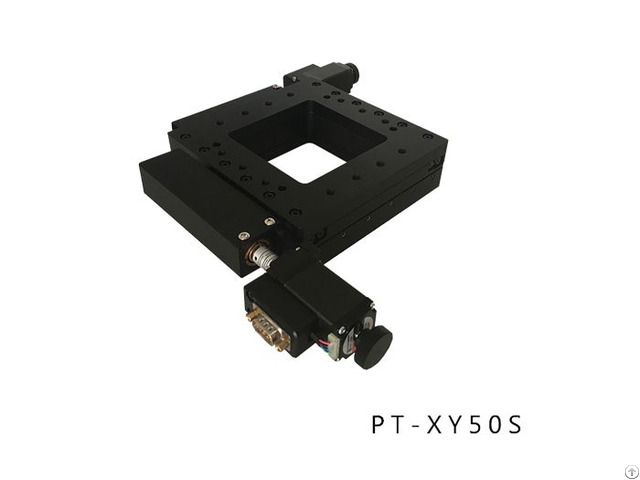

PT-XY50 XY Motorized Microscope Stage

Motorized XY Integral Combinating Stage

Motorized Stage Item Number PT-XY50

Structure Travel Range 50mm Platform 150mm × 150mm Bearing Construction High Precise Grinding Screw (1mm of leading) Travel Guide Crossed Roller Bearing Stepper Motor (1.8°) 28STH51H-0674B Material Aluminum Alloy - Black-Anodized Load Capacity 10Kgs Weight 3.2Kgs

Accuracy Design Resolution 5μm/Pulse, Non-MS Driver0.25μm/Pulse, 20MS Driver Max Velocity 6mm/sec Repeatability 1.5μm Absolute Accuracy 5μm Straightness 5μm Parallelization 15μm Pitching 50" Yawing 25" Backlash 2μm Lost Motion 2μm

Others Scales (-G), Servo Motor (-D)

New construction, new technology;the key index has up to the international level of the similar products by strictly inspection .

This series products are used to laser precision processing, three dimensional scanning measurement system and so on .

we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.

PRODUCT DETAILS:

ADVANTAGE:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets.

We have a group of experienced high-level processing technicians.

Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.

Provide high quality products for users.

we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.
