Rtp Tube Furnace For Lab - China
price: contact company for price

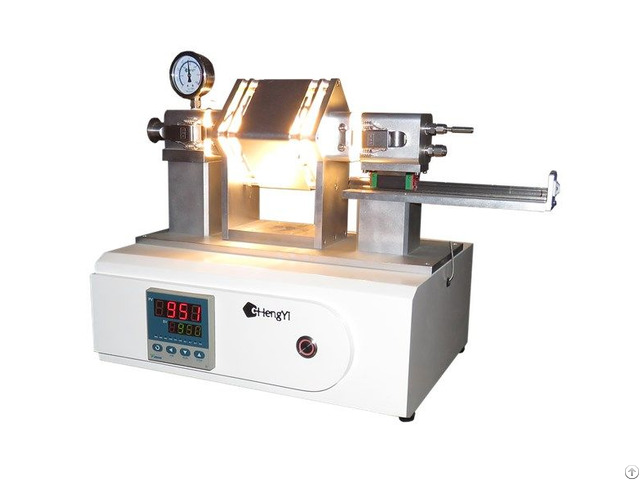

Mini RTP 1200 degree Tube Furnace with Halogen Tube Tube Furnace with Quartz Tube RTP Tube Furnace for Lab CHENGYI Tube Furnace with Quartz Tube APPLICATION
1 - Fast Annealing, Post-ion implantation annealing
2 - RTO, RTN
3 - Silicidation
4 - Diffusion
5 - Electrode alloying
6 - Crystallization and densification RTP Tube Furnace PARAMETERS
Product Name Mini RTP Tube Furnace
Model Mini-RTP
Furnace Type Fast Heating/Cooling Sintering
Display Model LED Digital Light
Maximum Temperature 1100℃
Working Temperature ≤1000℃
Heating rate ≤20℃/Second
Heating zones Single heating zone
Quartz Tube Diameter O.
D50*600mm
Inner Diameter I.
D 42*600mm
Heating Zone Length 100mm
Max Sample 35*25mm
Control mode Intelligent PID auto control
Temperature Accuracy ±1℃
Temperature curve 30 segments programmable
Over heat alarm Have
Overcurrent protection Have
Thermocouple Failure Protection Have
Temperature Sensor K-type thermocouple
Heating Element 3pieces Infrared tube
Quartz Tube Material High Purity Quartz
After-sales service 12 month warranty, durable maintaince and repair support
Power Supply 220V 50HZ
Rated power 1.5kw
Overall dimensions 610×400×410 (mm )
Packing 3-ply wooden case
Accessories Protective Glove, Crucible Tong, Crucible, Quartz Tube, Vacuum Flange, User Manual.
Company Contact:
- Phone: 860371-55027790
- Address: 136 yard, 10th Avenue,jingkai Area, zhengzhou city, Henan , China
- Email:
- Website: https://www.hnchengyi.com/
Published date: December 16, 2020
- Business Description: Henan Chengyi Equipment Science and Technology Co.,Ltd was founded in 2013 - Our company is a manufacturer and supplier of lab equipment.
Our Equipment range include: Tube Furnace, Muffle Furnace, CVD System,PECVD equipment,Plasma Cleaner,Hydraulic press,Lab grinding polishing equipment, lab ball mill etc.
Our product are widely sold to America, UAE, European, South Africa etc.
With Own R&D team and factory,we not only can supply standard lab equipment, also,we can do customized as request.
We sincerely welcome worldwide friend come to visit us.
