Temperature Controlled Spin Coater With Heating Cover - China

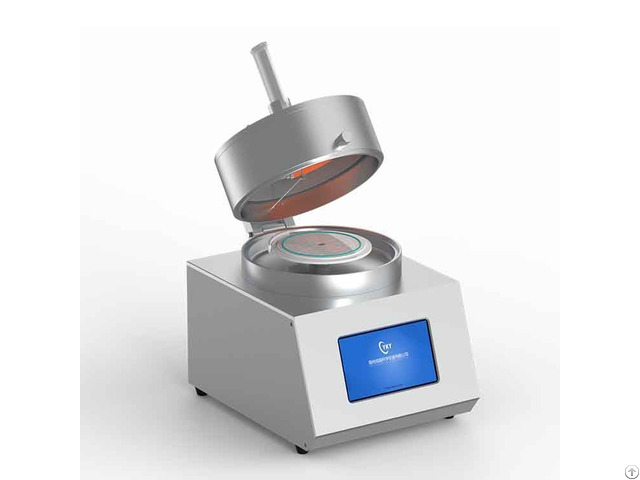

Spin coater with heating cover CY-SPC8-H

This spin coater adopts all-aluminum alloy chamber, which is beautiful and sturdy in appearance.

The device adopts advanced precision motor, the maximum speed can reach 10, 000rpm, which effectively guarantees the uniformity of film formation.

This spin coater adopts advanced precision motor, the maximum speed can reach 10, 000rpm, which effectively guarantees the uniformity of film formation.

In addition to the basic spin coating function, this product is also equipped with heating elements, which can be heated up to 200℃, temperature controlled by an intelligent temperature control meter, accurate temperature measurement, and completely controlled temperature rise process.

In addition, the instrument adopts touch screen control and can preset the coating curve, which greatly simplifies the use process and reduces the learning cost.

It is very suitable for laboratory purchase.

Spin coater with heating cover application:

The spin coater can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films.

It is mainly used in photoresist spin coating, biological medium preparation, sol-gel method for polymer film production, etc.

Spin coater with heating cover technical parameters: Item Detail

Spin coater Supply voltage AC220V, 50Hz Spin speed 0~10000rpm Acceleration 100~5000rpm/s Speed resolution 1rpm Single step time 3000s Substrate size Diameter ≤ 8 inches (200mm) Chamber material Aluminum alloy Heating temperature ≤200℃ Temperature control method AIP intelligent temperature control Operation method 7 inches HD LCD touch screen Dispensing method Manual dispensing, optional precision syringe pump Coating curve 5 segments per curve, a total of 5 curves can be stored Pumping port Φ8mm quick screw interface Overall size 290mm×365mm×300mm Total Weight 12kg

Exhaust system Vacuum pump Dry mechanical pump Pumping rate 1.1L/s Power supply AC220V 50/60Hz
