Transparent Acrylic Chamber Small 4 Inch Spin Coater - China

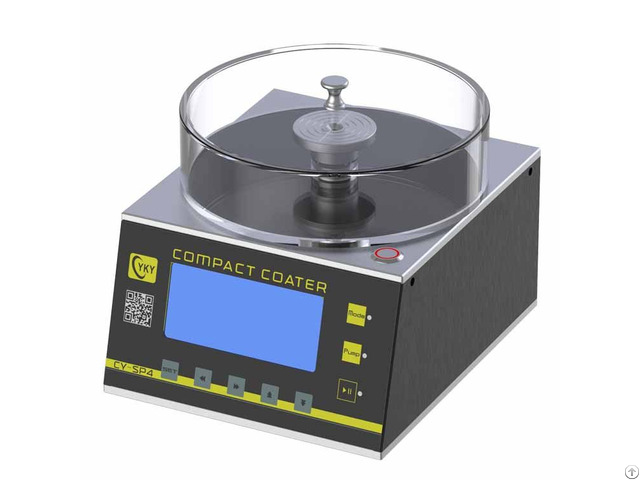

CY-SPC4-B transparent acrylic small spin coater this type of spin coater is designed small, and the whole body adopts aluminum alloy structure, transparent acrylic chamber and the appearance is beautiful and firm.

The spin coater adopts advanced precision motor, the maximum speed can reach 8, 000rpm; the control relies on the button and the high-brightness LCD screen, in addition to direct spin coating, it can pre-store the spin coating curve for program-controlled spin coating.

The instrument effectively guarantees the performance and function of the instrument under the premise of greatly reducing the volume, which is very suitable for laboratory purchase.

Small spin coater application:

The spin coater can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films.

It is mainly used in photoresist spin coating, biological medium preparation, sol-gel method for polymer film production, etc.

Small spin coater technical parameters: Item Detail

Spin coater Supply voltage AC220V, 50Hz Spin speed 0~8000rpm Acceleration 100~5000rpm/s Speed resolution 1rpm Single step time 3000s Substrate size Diameter ≤ 4 inches (100mm) Vacuum sucker Diameter 10mm/25mm/55mm Vacuum pump Oil-free vacuum rotary vane pump Chamber material Plexiglass Operation method Button + LCD screen Dispensing method Manual dispensing, optional precision syringe pump Coating curve 5 segments per curve, a total of 5 curves can be stored Pumping port Φ8mm quick screw joint Overall size 210mm×250mm×180mm Total Weight 8kg

Exhaust system Vacuum pump Dry mechanical pump Pumping rate 1.1L/s Power supply AC220V 50/60Hz
